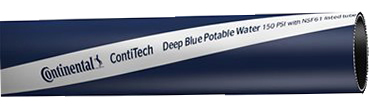

Continental ContiTech - Deep Blue Potable Water Hose
Vendor: Continental ContiTech
Category: Sanitary Food Grade
Sub Type: General Food Hose
Application:
Deep Blue Potable Water is primarily for liquid transfer It is used for the transfer of potable water, non-potable water or liquids not containing oils or chemicals
Tube:
Special tube material which is listed on NSF61 board
Reinforcement:
Spiral-plied synthetic fabric
Cover:
Blue SBR
Temperature:
-40°F to 150°F (-40°C to 66°C)
Branding:
Continental ContiTech Deep Blue Potable Water 150 psi with NSF61 listed tube material Made in Canada
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
Order Codes:
542-087
| SAP # | ID | Nom. OD | Max. WP | Weight | Request a Quote | ||||
| in. | mm | in. | mm | psi | MPa | lb./ft. | kg/m | ||
| 20873236 | 1 | 25.4 | 1.30 | 32.9 | 150 | 1.03 | 0.32 | 0.48 | Request Quote |
| 20873237 | 1 1/2 | 38.1 | 1.84 | 46.7 | 150 | 1.03 | 0.52 | 0.78 | Request Quote |
| 20873238 | 2 | 50.8 | 2.35 | 59.8 | 150 | 1.03 | 0.72 | 1.06 | Request Quote |
| 20873239 | 2 1/2 | 63.5 | 2.85 | 72.5 | 150 | 1.03 | 0.88 | 1.31 | Request Quote |
| 20873250 | 3 | 76.2 | 3.38 | 85.8 | 150 | 1.03 | 1.13 | 1.68 | Request Quote |
Hose design ratio (burst pressure) 4:1
 |
