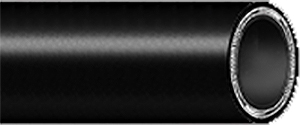

Continental ContiTech - Frac Hardwall Cut and Gouge Hose
Vendor: Continental ContiTech
Category: Fracturing Hose
Application:
A rugged and flexible hose designed to convey crude oil and oil slurry mixtures for Frac tank connections. Cover is good for demanding cut and gouge applications.
Tube:
Black Nitrile
Reinforcement:
Spiral-plied fabrics + double helix wires
Cover:
Black Carboxilated Nitrile. Hose has a built-in yellow wear ply to illustrate wear condition and potential trigger point for product replacement.
Temperature:
-25˚F to 180˚F (-32˚C to 82˚C)
Branding:
Frac Hardwall CG 4" ID 400 PSI WP Made in Canada
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
Order Codes:
543-443
| ID | Nom. OD | Max WP | Vacuum Rating | Bend Radius | Weight | Request a Quote | ||||||
| in | mm | in | mm | psi | MPa | in Hg | mmHg | in | mm | lb/ft | kg/m | |
| 4 | 101.6 | 4.93 | 125.3 | 400 | 2.76 | 29 | 736.6 | 24 | 609.6 | 4.13 | 6.15 | Request Quote |
 |
