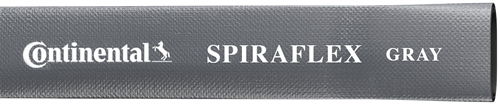

Continental ContiTech - Spiraflex Gray (Light Duty) Hose
Vendor: Continental ContiTech
Category: Water Hose
Application:
For light duty water discharge service.
Tube:
Black Pliovic™ compound
Reinforcement:
Synthetic fabric
Cover:
Grey Pliovic compound
Temperature:
-10°F to 150°F (-23°C to 66°C)
Packaging:
300’ continuous one piece, coiled and banded
Branding:
Example: Continental ContiTech Spiraflex® Gray 2" (50.8 mm) 80 psi (0.55 MPa) Made in USA
Couplings:
Contact JGB for proper fitting recommendation and coupling procedure.
Order Codes:
537-555
| ID | Nom. OD | Max. WP | Weight | Request a Quote | |||||
| in. | mm. | in. | mm. | psi | Mpa | lb./ft. | kg./m. | ||
| 1 1/2 | 38.1 | 1.72 | 43.7 | 90 | 0.62 | 0.18 | 0.27 | Request Quote | |
| 2 | 50.8 | 2.22 | 56.4 | 80 | 0.55 | 0.24 | 0.35 | Request Quote | |
| 2 1/2 | 63.5 | 2.79 | 70.9 | 60 | 0.41 | 0.35 | 0.52 | Request Quote | |
| 3 | 76.2 | 3.27 | 83.1 | 50 | 0.34 | 0.38 | 0.57 | Request Quote | |
| 4 | 101.6 | 4.33 | 110.0 | 45 | 0.31 | 0.63 | 1.01 | Request Quote | |
| 6 | 152.4 | 6.38 | 162.1 | 35 | 0.24 | 1.14 | 1.70 | Request Quote | |
Hose design ratio (burst pressure) 3:1.
Note: Working pressures are rated at 72°F.
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
