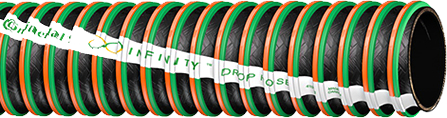

Infinity Fuel Drop Hose

Vendor: Continental ContiTech

Category: Petroleum Hose


Application:

Constructed with the exclusive PVC double helix for superior flexibility, abrasion resistance and low coefficient of friction for ease of maneuverability. Lightweight in construction, it is designed to transfer biodiesel and ethanol blends, gasoline and other petroleum products under pressure, gravity flow or medium suction (up to 23˝ Hg) at ambient temperature and with an aromatic content of 60% or less.

Tube:

Black Nitrile synthetic rubber (static dissipating)

Reinforcement:

Synthetic fabric plies with static wire

Cover:

Black Chemivic™ synthetic rubber with orange & green Pliovic® outer helix.

Temperature:

-40°F to 160°F (-40°C to 71°C)

Packaging:

Coiled and polywrapped. For cut length, contact JGB.

Branding:

Infinity™ Drop Hose Continental ContiTech

Couplings:

Use ContiTech Insta-Lock™ cam & groove fittings with this product.

Order Codes:

543-773

ID NOM. OD MAX. WP BEND RADIUS VACUUM HG WEIGHT Request A Quote
in. mm. in. mm. psi Mpa in. mm. in. mm. lb./ft. kg./m.
2 51.0 2.80 70.50 150 1.03 1.5 1.02 23 584 1.02 1.52 Request Quote
3 76.0 3.80 95.48 100 .69 2.0 1.46 23 584 1.46 2.18 Request Quote
4 102.0 4.80 121.47 75 .52 2.5 1.73 23 584 1.73 2.57 Request Quote
Hose design ratio (burst pressure) 4:1.
