Continental ContiTech - Smooth Bore Dock 200 Hose

Smooth Bore Dock 200 Hose

Vendor: Continental ContiTech

Category: Petroleum Hose


Application:

For the transfer of petroleum based products between docks and ships under all types of service conditions. It is available in a number of tube compounds to tailor the fluid handling capabilities to a wide variety of petroleum and chemical compositions.

Tube:

Nitrile synthetic rubber for up to 50% aromatics. Also available with a Flosyn® tube for up to 100% aromatics.

Reinforcement:

Spiral plied synthetic fabric with wire helix.

Cover:

Black Chemivic™ (smooth cover, wrap finish)

Temperature:

-25°F to 200°F (-32°C to 93°C)

Packaging:

Chloroplast heavy-duty packaging

Branding:

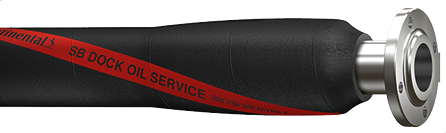

Continental ContiTech SB Dock oil service, 200 psi WP Nitrile

Couplings:

Coupled with standard built-in steel nipple/150#RFSO flanges.
Available in other bolt hole patterns, materials and floating flanges on request.
Swage nipples are offered up to 10".
Hose assembly is electrically continuous unless otherwise specified by customer.

Non-Stock/Samples:

Custom lengths available.

Order Codes:

541-004 (Nitrile Tube)
541-586 (Flosyn® Tube)

Options:

Custom lengths available, contact JGB customer service.

Smooth Bore Dock 200 Nitrile

SAP # ID Nom. OD Max WP Bend Radius Vacuum HG Weight Request a Quote
in. mm in. mm psi MPa in. mm in. mm lb./ft. kg/m
- 2 50.8 2.94 74.6 200 1.38 12 305 29 737 2.37 3.53 Request Quote
- 3 76.2 3.98 101.2 200 1.38 18 457 29 737 3.89 5.79 Request Quote
20014752 4 101.6 5.28 134.0 200 1.38 24 610 29 737 6.43 9.57 Request Quote
20014760 6 152.4 7.37 187.2 200 1.38 36 914 29 737 10.90 16.21 Request Quote
20014771 8 203.2 9.54 242.3 200 1.38 48 1219 29 737 16.08 23.93 Request Quote
20452847 10 254.0 11.55 293.4 200 1.38 60 1524 29 737 20.79 30.94 Request Quote
20014790 12 305.4 13.83 351.4 200 1.38 72 1829 29 737 29.56 43.99 Request Quote


Smooth Bore Dock 200 Flosyn®

SAP # ID Nom. OD Max WP Bend Radius Vacuum HG Weight Request a Quote
in. mm in. mm psi MPa in. mm in. mm lb./ft. kg/m
- 2 50.8 2.94 74.8 200 1.38 12 305 29 737 2.52 3.75 Request Quote
- 3 76.2 4.06 103.0 200 1.38 18 457 29 737 4.34 6.46 Request Quote
20248891 4 101.6 5.24 133.0 200 1.38 24 610 29 737 6.46 9.61 Request Quote
20170662 6 152.4 7.34 186.4 200 1.38 36 914 29 737 11.09 16.50 Request Quote
20015908 8 203.2 9.51 241.5 200 1.38 48 1219 29 737 16.36 24.35 Request Quote
20015912 10 254.0 11.52 292.6 200 1.38 60 1524 29 737 21.16 31.49 Request Quote
- 12 305.4 13.86 352.2 200 1.38 72 1829 29 737 30.83 45.88 Request Quote
Hose design ratio (burst pressure) 4:1.

Note: Factory coupled hose manufactured according to the Federal Regulations standard 33 CFR 154.500 and 33 CFR 156.170.
