Vendor: Parker Industrial

Category: Petroleum Hose    Sub Type: Petroleum Dock Hose

---

Application:

Molten Sulphur Dock Hose USCG

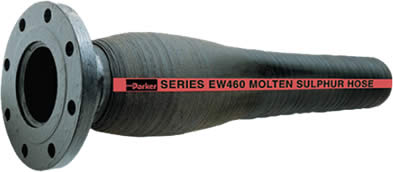

Series EW460 Custom Made Hose

• Hot, molten sulphur
• Transfer between barges, storage tanks and marine vessels

Series EW460 is a heavy duty, high temperature suction and discharge/dock hose for transferring molten sulphur between tankers, barges, and storage tanks. The hose construction incorporates a specially formulated high grade EPDM tube that features a temperature rating to 300°F (149°C). The wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The rugged, high grade EPDM cover is resistant to abrasion, heat, mild chemicals and ozone. Series EW460 meets all United States Coast Guard (USCG) requirements for dock/OS&D hose.

NOTE:

• Other customized versions of this product are available. Contact JGB.

Design Factor:  5:1
Vacuum:  Full
Industry Standards:  USCG

Tube:

Black EPDM

Reinforcement:

Multiple plies of tire cord with wire helix

Cover:

Black EPDM; wrapped finish

Temperature:

-40°F to +300°F (-40°C to +149°C)

Packaging:

Lengths or coils in bales, crates or slat packs

Branding:

PARKER SERIES EW460 MOLTEN SULPHUR DOCK HOSE

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Colors:

Black with red stripe

Part No.	ID	ID	Reinf Plies	OD	OD	Approx Wt	Approx Wt	Min Bend Rad	Min Bend Rad	Max Rec WP	Max Lg	Request Quote
	(in)	(mm)		(in)	(mm)	(lbs/ft)	(kg/ft)	(in)	(mm)	(psi)	(ft)
EW460-6000	6	152.4	6	8	203.2	12	5.44	42	1066.8	200	100	Request Quote
EW460-8000	8	203.2	8	10.25	260.4	20	9.07	54	1371.6	200	50	Request Quote
EW460-10000	10	254	8	12.25	311.2	28	12.7	66	1676.4	200	50	Request Quote

---
