Vendor: Gates

Category: Chemical Hose    Sub Type: Chemical Transfer Hose

---

Application:

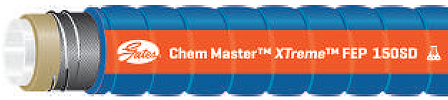

Tank truck, barge, ship, or storage tank transfer of a variety of chemical products. Chem Master™ XTreme™ FEP has a wire helix for full suction capability. The tube stock Fluoroethylenepropylene (FEP) has excellent chemical resistance and is backed by Gates Gatron™ for flex fatigue safety at the coupling. Chem Master™ XTreme™ FEP is designed for easy cleaning in a bath containing 10% (NaOH) +212°F (+100°C). Cleaning in place (CIP) methods may be used. Applications include most basic chemicals which are building blocks for numerous chemicals used in a variety of industries. Call JGB for proper hose selection. Compatible with commercially available Bio–Diesel fuels up to B–100.

CAUTION: Chem Master™ XTreme™ FEP is designed to withstand fluid temperatures to +300°F (+149°C); however the rating is dependent on the specific chemical conveyed. Contact JGB for any chemical above +125°F (+52°C).

Design Factor:

4:1

STANDARDS:

Meets FDA requirements.

Vacuum

30.0 In Hg

Tube:

Type T (FEP) Fluoroethylenepropylene. White. Backed with Gatron™ (Modified XLPE).

Reinforcement:

Synthetic, high tensile textile with steel wire helix.

Cover:

Type P (EPDM). Blue corrugated with orange stripe.

Temperature:

–40°F to +300°F (–40°C to +149°C) normal service.

Packaging:

All lengths coiled and wrapped in polyethylene.

Couplings:

Contact JGB for proper hose fitting requirements.

Hose I.D.		Hose O.D.		Max. W.P.		MBR	Wt. Per ft	Length	Item No.	Request a Quote
(in)	(mm)	(in)	(mm)	(psi)	(Bar)	(in)	(Lbs.)	(ft)
3/4	19.1	1.29	32.8	200	13.8	4	0.52	20	4698-0021	Request Quote
3/4	19.1	1.29	32.8	200	13.8	4	0.52	100	4698-0011	Request Quote
1	25.4	1.56	39.6	200	13.8	5	0.63	20	4698-0022	Request Quote
1	25.4	1.56	39.6	200	13.8	5	0.63	100	4698-0012	Request Quote
1	25.4	1.56	39.6	200	13.8	5	0.63	200	4698-0029	Request Quote
1 1/4	31.8	1.8	45.7	200	13.8	7	0.74	100	4698-0104	Request Quote
1 1/2	38.1	2.05	52.1	200	13.8	8	0.93	20	4698-0023	Request Quote
1 1/2	38.1	2.05	52.1	200	13.8	8	0.93	100	4698-0013	Request Quote
1 1/2	38.1	2.05	52.1	200	13.8	8	0.93	200	4698-0031	Request Quote
2	50.8	2.55	64.8	200	13.8	9	1.14	20	4698-0024	Request Quote
2	50.8	2.55	64.8	200	13.8	9	1.14	100	4698-0014	Request Quote
2 1/2	63.5	3.07	78	150	10.3	12	1.44	20	4698-0025	Request Quote
2 1/2	63.5	3.07	78	150	10.3	12	1.44	100	4698-0015	Request Quote
3	76.2	3.59	91.2	150	10.3	18	1.77	20	4698-0026	Request Quote
3	76.2	3.59	91.2	150	10.3	18	1.77	100	4698-0016	Request Quote
4	101.6	4.66	118.4	125	8.6	24	2.6	20	4698-0027	Request Quote
4	101.6	4.66	118.4	125	8.6	24	2.6	100	4698-0017	Request Quote



---
