Hot Tar and Asphalt Hose - Series EW499

Vendor: Parker Industrial

Category: Oil Hose (Suction and Discharge)
Category: Suction & Discharge    Sub Type: Oil Hose Suction & Discharge


Application:

Hot Tar & Asphalt Hose
FKM Tube
USCG

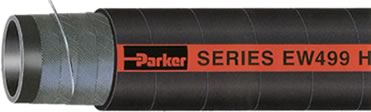

Series EW499 Custom Made Hose

  • Hot asphalt, oil, tar
  • Transfer between barges, storage tanks and marine vessels

Series EW499 is a heavy duty, high temperature suction and discharge/dock hose for transferring hot tar and asphalt between tankers, barges, and storage tanks. The hose construction incorporates a specially formulated tube that features a temperature rating to 350°F (177°C). The wire helix provides full suction capability, kink resistance and a path to conduct a static electrical charge to ground. The rugged cover is resistant to abrasion, heat, oil and weathering. Series EW499 meets all United States Coast Guard (USCG) requirements for dock/OS&D hose.

NOTES:
  • Other customized versions of this product are available. Contact JGB.
  • For smaller diameter suction and discharge hose, refer to Series SW387.
  • For high pressure applicator hose, refer to Series 7204.

Design Factor:  5:1
Vacuum:  Full
Industry Standards:  USCG

Tube:

Black FKM fluoroelastomer

Reinforcement:

Multiple plies of tire cord with wire helix

Cover:

Black synthetic rubber; wrapped finish

Temperature:

-40°F to +350°F (-40°C to +177°C)

Packaging:

Lengths or coils in bales, crates or slat packs

Branding:

PARKER SERIES EW499 HOT TAR & ASPHALT HOSE

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Lengths:

100 ft.

Colors:

Black with red stripe

Part No. ID ID Reinf
Plies
OD OD Approx Wt Approx Wt Min Bend Rad Min Bend Rad Max Rec WP Max Lg  Request Quote
(in) (mm) (in) (mm) (lbs/ft) (kg/ft) (in) (mm) (psi) (ft)
EW499-10000 10 254 8 12 304.8 20.8 9.43 66 200 13.8 50 Request Quote
EW499-10000 10 254 8 12 304.8 20.8 9.43 66 1676.4 200 50 Request Quote
EW499-4000 4 101.6 4 5.25 133.3 5.5 2.49 28 200 13.8 100 Request Quote
EW499-4000 4 101.6 4 5.25 133.3 5.5 2.49 28 711.2 200 100 Request Quote
EW499-6000 6 152.4 6 7.5 190.5 9.9 4.5 42 200 13.8 100 Request Quote
EW499-6000 6 152.4 6 7.5 190.5 9.9 4.5 42 1066.8 200 100 Request Quote
EW499-8000 8 203.2 8 9.875 250.8 15.3 6.9 54 200 13.8 50 Request Quote
EW499-8000 8 203.2 8 9.875 250.8 15.3 6.9 54 1371.6 200 50 Request Quote

Warning!

  • Do not use above 350°F (177°C) or for applications beyond its intended service.
