Kuriyama - HOSE TEC Smooth Bore (Lined) - Smooth Flow - Metal Hose To Go Assembly
Vendor: Kuriyama
Category: Material Handling Hose
Sub Type: Material Handling Bulk Transfer Hose
Application:
- Abrasive Material Handling
- Bulk Unloading/Loading (Railcar/Truck)
- Dry Bulk Transfer (Railcar/Truck/In-Plant)
- Environmental/Industrial Clean-Up
- Fly Ash/Soda Ash Handling
- Grain Handling
- High Temperature Material Handling
- Hot Air Blower/Suction
- Low Temperature Material Transfer
- Plastic Pellet Transfer
- Pneumatic Transfer
- Truck - Bulk Unloading/Loading
- Vacuum Trucks and Equipment
Features and Benefits

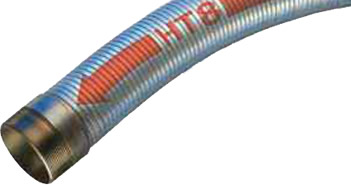

- Pre-welded with Stainless Steel MPT male pipe threaded ends
Available in three hose styles:
- HTS4200 – Medium Weight (.017” - .020” strip thickness)
- HTSS5150 – Lt. Wt. with Stainless Steel Liner (.015” Armor/.015” Liner)
- HTSS5180 – Med. Wt. with Stainless Steel Liner (.018” Armor/.015” Liner)
- Ideal for hot air blower lines and material transfer/transport with pneumatic trailers, railcars and in-plant applications.
- Readily accepts the NEW Kuriyama-Couplings™ Threaded Hex SWIVEL Couplers and Adapters…recommended.
- Also readily accepts the Kuriyama-Couplings™ Aluminum and Stainless Steel Quick-Acting Camlock Type-A Male Adapters and Type-D Female Couplers…non-swivel.
- SWIVEL Couplers and Adapters make hose handling easier and help extend hose life!
Note : OAL (overall length) of Metal-Hose-To-Go™ interlock metal hoses refers to assembly lengths in the nominal “Natural-Lie” state. Due to the nature of interlock metal hose, actual lengths may vary slightly.
Category:
HOSE TEC®
| Former Part Number | New Part Number | ID | OAL | Minimum Bend Radius | Weight (lbs./ea.) | Request a Quote |
| SS154X228STOE | HTSS5150-400X19TOE | 4 in | 19.0 ft | 15.00 in | 67 lb | Request Quote |
| SS184X120STOE | HTSS5180-400X10TOE | 4 in | 10.0 ft | 16.00 in | 38 lb | Request Quote |
| SS184X144STOE | HTSS5180-400X12TOE | 4 in | 12.0 ft | 16.00 in | 45 lb | Request Quote |
| SS184X180STOE | HTSS5180-400X15TOE | 4 in | 15.0 ft | 16.00 in | 56 lb | Request Quote |
| SS184X210STOE | HTSS5180-400X17.5TOE | 4 in | 17.5 ft | 16.00 in | 65 lb | Request Quote |
| SS184X228STOE | HTSS5180-400X19TOE | 4 in | 19.0 ft | 16.00 in | 70 lb | Request Quote |
| SS184X300STOE | HTSS5180-400X25TOE | 4 in | 25.0 ft | 16.00 in | 92 lb | Request Quote |
| SS186X120STOE | HTSS5180-600X10TOE | 6 in | 10.0 ft | 24.50 in | 62 lb | Request Quote |
| SS185X180STOE | HTSS5180-500X15TOE | 5 in | 15.0 ft | 20.50 in | 75 lb | Request Quote |
| SS185X228STOE | HTSS5180-500X19TOE | 5 in | 19.0 ft | 20.50 in | 93 lb | Request Quote |
| SS186X180STOE | HTSS5180-600X15TOE | 6 in | 15.0 ft | 24.50 in | 90 lb | Request Quote |
| SS186X228STOE | HTSS5180-600X19TOE | 6 in | 19.0 ft | 24.50 in | 112 lb | Request Quote |
| SS186X300STOE | HTSS5180-600X25TOE | 6 in | 25.0 ft | 24.50 in | 146 lb | Request Quote |
 |
