Kuriyama - Piranhaflex 100R7 Series PF367/PF367NC

Piranhaflex  100R7 Series PF367/PF367NC

Vendor: Kuriyama

Category: Hydraulic Hose


Application:

Piranhaflex™ Series PF367 and PF367NC (for nonconductive applications) are ideal for medium pressure hydraulic hose applications for hydraulic oil and lubrication lines.

Features:

  • Meets or exceeds SAE J517 Standards
  • Exceeds 100R7 impulse requirements
  • Light weight and flexible
  • Ideal for general hydraulic services
  • Tested at ½ bend radius under SAE Standards

Tube:

Seamless polyester inner tube.

Reinforcement:

Braided high tensile strength fiber reinforcement.

Cover:

Series PF367 has a black abrasion resistant polyurethane pin picked cover;
PF367NC Series hose has an Orange non-conductive (REACH Compliant), non-pin pricked abrasion resistant polyurethane cover.

Temperature:

-40°F (-40°C) to +200°F (+93°C) for petroleum based hydraulic fluids,
-40°F (-40°C) to +140°F (+60°C) for water-based and phosphate-ester based fluids.

Packaging:

Hoses supplied in 250 ft. reels & 50 ft. box lengths. All reels will have no more than 2 pieces, with no piece less than 50’ in length.

Branding:

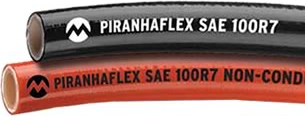

PIRANHAFLEX SAE 100R7 and PIRANHAFLEX SAE 100R7 NON-CONDUCTIVE

Lengths:

250 ft. reels and 50 ft. box lengths

Colors:

Black, Orange

Options:

(-02 and -16 MTO are available upon request)
(Twin/Multi Line MTO are available upon request)

Series Number Size
Code
Nominal ID Nominal OD Max.
Working†
Pressure
Min. Bending
Radius
Approx.
Weight
Coupling Recommendations Request Quote
(In) (mm) (In) (mm) (psi) (In) (mm) (lbs/100ft) AlfaCrimp
(One Piece)
Ferrules
Non-Skive
(Two Piece)
PF367/PF367NC 03 3/16 4.8 0.415 10.5 3,000 0.75 19 5 N/A PFR-03 Request Quote
PF367/PF367NC 04 1/4 6.4 0.496 12.6 2,750 1.50 38 6 N/A PFR-04 Request Quote
PF367/PF367NC 05 5/16 8.1 0.580 14.7 2,500 1.75 44 8 N/A PFR7-05 Request Quote
PF367/PF367NC 06 3/8 9.7 0.650 16.5 2,250 2.00 51 11 N/A PFR-06 Request Quote
PF367/PF367NC 08 1/2 13.1 0.834 21.2 2,000 3.00 76 16 N/A PFR-08 Request Quote
PF367/PF367NC 12 3/4 19.1 1.050 26.7 1,250 6.00 152 22 N/A PFR-12 Request Quote
† Minimum burst pressure 4-to-1 safety factor.
