Vendor: Parker Industrial

Category: Vacuum Hose

---

Application:

Corrugated Industrial Vacuum Hose
1/8" Natural Rubber Tube
Series EWC888 Custom Made Hose

• Abrasive materials, debris, water
• Construction, general industrial

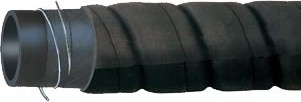

Series EWC888 is a flexible, light duty suction/vacuum hose for general industrial applications. The 1/8" natural rubber tube provides abrasion resistance, and the dual wire helix provides full suction capability, kink resistance and a path to conduct a static charge to ground. The corrugated SBR cover provides flexibility and is resistant to abrasion, cuts, scuffs and weathering.

NOTE:  Other customized versions of this product are available. Contact JGB.

Design Factor:  4:1
Vacuum:  Full
Industry Standards:  None applicable

Tube:

1/8" black natural rubber

Reinforcement:

Multiple plies of tire cord with dual wire helix

Cover:

Black SBR; corrugated wrapped finish

Temperature:

-40°F to +150°F (-40°C to +66°C)

Packaging:

Lengths or coils in bales, crates or slat packs

Branding:

Not branded

Couplings:

Contact JGB for proper fitting recommendation and coupling procedure.

Colors:

Black

Part No.	ID	ID	Reinf Plies	OD	OD	Approx Wt	Approx Wt	Min Bend Rad	Min Bend Rad	Max Rec WP	Max Rec WP	Max Lg	Request Quote
	(in)	(mm)		(in)	(mm)	(lbs/ft)	(kg/ft)	(in)	(mm)	(psi)	(bar)	(ft)
EWC888-5000	5	127	2	5.813	147.7	3.8	1.72	20	508	75	5.2	100	Request Quote
EWC888-6000	6	152.4	2	6.875	174.6	4.8	2.18	24	609.6	75	5.2	100	Request Quote
EWC888-8000	8	203.2	2	8.938	227	7	3.18	36	914.4	75	5.2	100	Request Quote
EWC888-10000	10	254	2	11	179.4	10.3	4.67	48	1219.2	50	3.4	50	Request Quote
EWC888-12000	12	304.8	2	13.125	333.4	13.2	6	60	1524	40	2.8	50	Request Quote

---
