Kuriyama - Kuri Tec HS1171, HS1174, HS1176 Series General Service PVC Pneumatic Air Tool Hose Assemblies

Kuri Tec HS1171, HS1174, HS1176 Series General Service PVC Pneumatic Air Tool Hose Assemblies

Vendor: Kuriyama

Category: Air and Multipurpose Hose

Application:

  • Transfer of air, water and mild water soluble chemicals.
  • Ideal for in-plant and outdoor applications that require an economical general purpose hose.
  • Excellent air supply line for pneumatic tools and paint spray systems.

Features:

  • Economical, lightweight, low temperature native to rubber hose.
  • Excellent abrasion resistance.
  • U. V. and weather resistant.
  • Non-marking pin-pricked cover.
  • Complies with RMA’s Class B designation for medium/high oil resistance.
  • One piece lengths.
  • Formulated for low temperature flexibility.
  • Phthalate Free!

Tube:

Black PVC compound

Reinforcement:

High tensile strength yarn

Cover:

PVC compound

Temperature:

-15°F (-26°C) to +150°F (+65°C)

Couplings:

1/4" ID – 1/4" X 1/4"M NPT
3/8" ID – 3/8" X 1/4"M NPT
1/2" ID – 1/2" X 3/8"M NPT

Category:

Kuri Tec

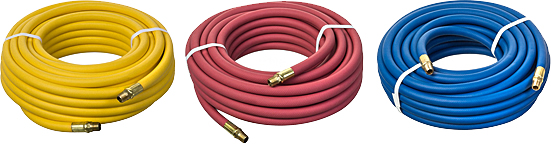

Colors:

Yellow: HS1171
Red: HS1174
Blue: HS1176

Untitled Document
Item # Standard Stock Colors Size Code Nominal ID zzz Nominal OD zzz Maximum Working Pressure† at 122ºF (50ºC) Maximum Working Pressure† at 70ºF (20ºC) Assembled Lengths Approx. Wt. per Pkg. Request a Quote
HS1171-04X25 Yellow 4 1/4 in 6.5 mm 0.475 in 12.1 mm 150 psi 300 psi 25 ft 1.9 lb Request Quote
HS1171-04X50 Yellow 4 1/4 in 6.5 mm 0.475 in 12.1 mm 150 psi 300 psi 50 ft 3.7 lb Request Quote
HS1171-04X100 Yellow 4 1/4 in 6.5 mm 0.475 in 12.1 mm 150 psi 300 psi 100 ft 7.4 lb Request Quote
HS1171-06X25 Yellow 6 3/8 in 9.5 mm 0.600 in 15.2 mm 150 psi 300 psi 25 ft 2.6 lb Request Quote
HS1171-06X50 Yellow 6 3/8 in 9.5 mm 0.600 in 15.2 mm 150 psi 300 psi 50 ft 5.1 lb Request Quote
HS1171-06X100 Yellow 6 3/8 in 9.5 mm 0.600 in 15.2 mm 150 psi 300 psi 100 ft 10.2 lb Request Quote
HS1171-08X25 Yellow 8 1/2 in 12.7 mm 0.750 in 19.1 mm 150 psi 300 psi 25 ft 3.5 lb Request Quote
HS1171-08X50 Yellow 8 1/2 in 12.7 mm 0.750 in 19.1 mm 150 psi 300 psi 50 ft 7.0 lb Request Quote
HS1171-08X100 Yellow 8 1/2 in 12.7 mm 0.750 in 19.1 mm 150 psi 300 psi 100 ft 14.0 lb Request Quote
HS1174-04X25 Red 4 1/4 in 6.5 mm 0.475 in 12.1 mm 300 psi 150 psi 25 ft 1.9 lb Request Quote
HS1174-04X50 Red 4 1/4 in 6.5 mm 0.475 in 12.1 mm 300 psi 150 psi 50 ft 3.7 lb Request Quote
HS1174-04X100 Red 4 1/4 in 6.5 mm 0.475 in 12.1 mm 300 psi 150 psi 100 ft 7.4 lb Request Quote
HS1174-06X25 Red 6 3/8 in 9.5 mm 0.600 in 15.2 mm 300 psi 150 psi 25 ft 2.6 lb Request Quote
HS1174-06X50 Red 6 3/8 in 9.5 mm 0.600 in 15.2 mm 300 psi 150 psi 50 ft 5.1 lb Request Quote
HS1174-06X100 Red 6 3/8 in 9.5 mm 0.600 in 15.2 mm 300 psi 150 psi 100 ft 10.2 lb Request Quote
HS1174-08X25 Red 8 1/2 in 12.7 mm 0.750 in 19.1 mm 300 psi 150 psi 25 ft 3.5 lb Request Quote
HS1174-08X50 Red 8 1/2 in 12.7 mm 0.750 in 19.1 mm 300 psi 150 psi 50 ft 7.0 lb Request Quote
HS1174-08X100 Red 8 1/2 in 12.7 mm 0.750 in 19.1 mm 300 psi 150 psi 100 ft 14.0 lb Request Quote
HS1176-04X25 Blue 4 1/4 in 6.5 mm 0.475 in 12.1 mm 300 psi 150 psi 1.9 lb 25 ft Request Quote
HS1176-04X50 Blue 4 1/4 in 6.5 mm 0.475 in 12.1 mm 300 psi 150 psi 3.7 lb 50 ft Request Quote
HS1176-04X100 Blue 4 1/4 in 6.5 mm 0.475 in 12.1 mm 300 psi 150 psi 7.4 lb 100 ft Request Quote
HS1176-06X25 Blue 6 3/8 in 9.5 mm 0.600 in 15.2 mm 300 psi 150 psi 2.6 lb 25 ft Request Quote
HS1176-06X50 Blue 6 3/8 in 9.5 mm 0.600 in 15.2 mm 300 psi 150 psi 5.1 lb 50 ft Request Quote
HS1176-06X100 Blue 6 3/8 in 9.5 mm 0.600 in 15.2 mm 300 psi 150 psi 10.2 lb 100 ft Request Quote
HS1176-08X25 Blue 8 1/2 in 12.7 mm 0.750 in 19.1 mm 300 psi 150 psi 3.5 lb 25 ft Request Quote
HS1176-08X50 Blue 8 1/2 in 12.7 mm 0.750 in 19.1 mm 300 psi 150 psi 7.0 lb 50 ft Request Quote
HS1176-08X100 Blue 8 1/2 in 12.7 mm 0.750 in 19.1 mm 300 psi 150 psi 14.0 lb 100 ft Request Quote
† NOTE: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
