Kuriyama - PNEU-THANE Series K5090 / K5094 / K5096 Pneumatic Air Tool Hose
Vendor: Kuriyama
Category: Air and Multipurpose Hose
Application:
PNEU-THANE™ Series K5090/K5094/K5096 — An extremely lightweight, tough, flexible pneumatic air
tool hose that is suitable for a wide range of industrial and construction applications.
- For use with pneumatic air tools such as roofing nailers, sanders, chippers, impact wrenches, screwdrivers and staplers.
- In-plant assembly line air service.
- Automotive repair and body shops.
- Construction sites.
- Marine applications.
- Air service for spray painting equipment.
Features:
- Very lightweight and flexible . . . helps to cut down on work-related injuries.
- Good flex fatigue and resilience characteristics.
- Excellent resistance to oils and solvents.
- High oil resistance, complies with ARPM’s Class A Designation.
- Superior cut-resistance.
- High abrasion-resistance . . . provides extra long life compared with conventional PVC or rubber air hoses.
- Good resistance to hydrolysis and algae in warm water applications.
- Silicone-free core and cover.
- Non-conductive compounds.
- Non-marking cover.
- One-piece lengths.
- Individually shrink-wrapped assemblies are available,contact JGB
- RoHS(16) compliant.
- Phthalate Free!
Tube:
Clear ether-based polyurethane
Reinforcement:
High tensile strength yarn
Cover:
Ether-based polyurethane
Temperature:
-40 to 185 ºF
-40 to 85 ºC
Category:
Kuri Tec®
Colors:

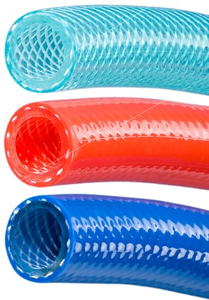

Available in three colors: K5090 – Turquoise Tint, K5094 – Red, K5096 – Blue.
| Item # | Standard Stock Color | Size Code | Nominal ID | Nominal OD | Maximum Working Pressure at 70 ºF (20 ºC) | Maximum Working Pressure at 122 ºF (50 ºC) | Standard Lengths | Packaging | Approx. Wt. Per Pkg. | Request a Quote | ||
| in | mm | in | mm | psi | psi | ft. | lbs | |||||
| K5090-04X100 | Turquoise Tint | 4 | 1/4 | 6.5 | 0.395 | 10.0 | 250 psi | 200 psi | 100 ft | Coil/ Box | 4 lb | Request Quote |
| K5090-04X500 | Turquoise Tint | 4 | 1/4 | 6.5 | 0.395 | 10.0 | 250 psi | 200 psi | 500 ft | Reel | 27 lb | Request Quote |
| K5090-06X100 | Turquoise Tint | 6 | 3/8 | 9.5 | 0.560 | 14.2 | 250 psi | 200 psi | 100 ft | Coil/ Box | 8 lb | Request Quote |
| K5090-06X500 | Turquoise Tint | 6 | 3/8 | 9.5 | 0.560 | 14.2 | 250 psi | 200 psi | 500 ft | Reel | 47 lb | Request Quote |
| K5090-08X100 | Turquoise Tint | 8 | 1/2 | 12.5 | 0.688 | 17.5 | 250 psi | 200 psi | 100 ft | Coil/ Box | 10 lb | Request Quote |
| K5090-08X500 | Turquoise Tint | 8 | 1/2 | 12.5 | 0.688 | 17.5 | 250 psi | 200 psi | 500 ft | Reel | 57 lb | Request Quote |
| K5094-04X100 | Red | 4 | 1/4 | 6.5 | 0.395 | 10.0 | 250 psi | 200 psi | 100 ft | Coil/ Box | 4 lb | Request Quote |
| K5094-04X500 | Red | 4 | 1/4 | 6.5 | 0.395 | 10.0 | 250 psi | 200 psi | 500 ft | Reel | 27 lb | Request Quote |
| K5094-06X100 | Red | 6 | 3/8 | 9.5 | 0.560 | 14.2 | 250 psi | 200 psi | 100 ft | Coil/ Box | 8 lb | Request Quote |
| K5094-06X500 | Red | 6 | 3/8 | 9.5 | 0.560 | 14.2 | 250 psi | 200 psi | 500 ft | Reel | 47 lb | Request Quote |
| K5094-08X100 | Red | 8 | 1/2 | 12.5 | 0.688 | 17.5 | 250 psi | 200 psi | 100 ft | Coil/ Box | 10 lb | Request Quote |
| K5094-08X500 | Red | 8 | 1/2 | 12.5 | 0.688 | 17.5 | 250 psi | 200 psi | 500 ft | Reel | 57 lb | Request Quote |
| K5096-04X100 | Blue | 4 | 1/4 | 6.5 | 0.395 | 10.0 | 250 psi | 200 psi | 100 ft | Coil/ Box | 4 lb | Request Quote |
| K5096-04X500 | Blue | 4 | 1/4 | 6.5 | 0.395 | 10.0 | 250 psi | 200 psi | 500 ft | Reel | 27 lb | Request Quote |
| K5096-06X100 | Blue | 6 | 3/8 | 9.5 | 0.560 | 14.2 | 250 psi | 200 psi | 100 ft | Coil/ Box | 8 lb | Request Quote |
| K5096-06X500 | Blue | 6 | 3/8 | 9.5 | 0.560 | 14.2 | 250 psi | 200 psi | 500 ft | Reel | 47 lb | Request Quote |
| K5096-08X100 | Blue | 8 | 1/2 | 12.5 | 0.688 | 17.5 | 250 psi | 200 psi | 100 ft | Coil/ Box | 10 lb | Request Quote |
| K5096-08X500 | Blue | 8 | 1/2 | 12.5 | 0.688 | 17.5 | 250 psi | 200 psi | 500 ft | Reel | 57 lb | Request Quote |
† NOTE: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Phthalate Free(15), RoHS(16)
 |
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
