Series FLO-TEMP -Sockets

Description:

200/300/500

Coupling Category

Straight-Through Couplings

Manufacturer

Hansen

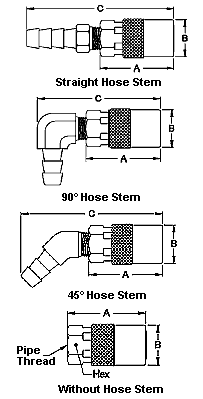

Straight Hose Stem
90° hosetem
Body Size (inch)
Part Number
Hose.I.D.
Dimensions (inches)
Body Size (inch)
Part Number
Hose.I.D.
Dimensions (inches)
Non-Valved
Valved
A
B
C
Non-Valved
Valved
A
B
C
1/4
FTS-204
FTS-204V
1/4"
1.36
0.67
2.65
1/4
FTS-214
FTS-214V
1/4"
1.36
0.67
2.17
1/4
FTS-204HP*
FTS-204VHP*
1/4"
1.36
0.67
2.65
1/4
FTS-214HP*
FTS-214VHP*
1/4"
1.36
0.67
2.17
1/4
FTS-205
FTS-205V
5/16"
1.36
0.67
2.66
1/4
FTS-215
FTS-215V
5/16"
1.36
0.67
2.17
1/4
FTS-206
FTS-206V
3/8"
1.36
0.67
2.65
1/4
FTS-216
FTS-216V
3/8"
1.36
0.67
2.17
1/4
FTS-206HP*
FTS-206VHP*
3/8"
1.36
0.67
2.65
1/4
FTS-216HP*
FTS-216VHP*
3/8"
1.36
0.67
2.17
3/8
FTS-306
FTS-306V
3/8"
1.80
0.91
3.13
3/8
FTS-316
FTS-316V
3/8"
1.80
0.91
2.62
3/8
FTS-306HP*
FTS-306VHP*
3/8"
1.80
0.91
3.13
3/8
FTS-316HP*
FTS-316VHP*
3/8"
1.80
0.91
2.62
3/8
FTS-308
FTS-308V
1/2"
1.80
0.91
3.25
3/8
FTS-318
FTS-318V
1/2"
1.80
0.91
2.83
3/8
FTS-308HP*
FTS-308VHP*
1/2"
1.80
0.91
3.25
3/8
FTS-318HP*
FTS-318VHP*
1/2"
1.80
0.91
2.83
1/2
FTS-504
FTS-504V
1/2"
2.23
1.17
3.66

1/2
FTS-504HP*
FTS-504VHP*
1/2"
2.23
1.17
3.66

1/2
FTS-506
FTS-506V
3/4"
2.23
1.17
3.63

1/2
FTS-506HP*
FTS-506VHP*
3/4"
2.23
1.17
3.63


45° hosetem
Without hosetem
Body Size (inch)
Part Number
Hose.I.D.
Dimensions (inches)
Body Size (inch)
Part Number
Dimensions (inches)
Thread Size NPTF
Non-Valved
Valved
A
B
C
A
B
HEX
1/4
FTS-224
FTS-224V
1/4"
1.36
0.67
2.53
1/4
LNFT-200
1.36
0.67
0.56
1/8-27
1/4
FTS-224HP*
FTS-224VHP*
1/4"
1.36
0.67
2.53
3/8
LNFT-300
1.80
0.91
0.88
1/4-18
1/4
FTS-225
FTS-225V
5/16"
1.36
0.67
2.53
1/2
LNFT-500
2.23
1.17
1.13
1/2-14
1/4
FTS-226
FTS-226V
3/8"
1.36
0.67
2.53

1/4
FTS-226HP*
FTS-226VHP*
3/8"
1.36
0.67
2.53

3/8
FTS-326
FTS-326V
3/8"
1.80
0.91
3.09

3/8
FTS-326HP*
FTS-326VHP*
3/8"
1.80
0.91
3.09

3/8
FTS-328
FTS-328V
1/2"
1.80
0.91
3.17

3/8
FTS-328HP*
FTS-328VHP*
1/2"
1.80
0.91
3.17


Part numbers with HP suffix have push-on hose barb.
All other FTS part numbers have standard hose barb.
All dimensions in inches.
