Series ST Straight-Through - Sockets
Description:
Coupling Category
Straight-Through Couplings
Manufacturer
Hansen
|

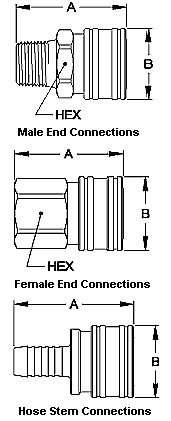

Male End Connections
|
|||||||
|
BodySize
|
Part Number
|
Thread Size
|
Dimensions
|
||||
|
Brass
|
Stainless
|
NPTF
|
BSPP
|
A
|
B
|
Hex
|
|
|
1/8
|
1-S10
|
LL1-S10
|
1/8-27
|
—
|
1.06
|
0.69
|
0.50
|
|
1/8
|
1-S10BS
|
LL1-S10BS
|
—
|
1/8-28
|
1.00
|
0.69
|
0.56
|
|
1/4
|
2-S15
|
LL2-S15
|
1/4-18
|
—
|
1.72
|
0.94
|
0.81
|
|
1/4
|
2-S15BS
|
LL2-S15BS
|
—
|
1/4-19
|
1.56
|
0.94
|
0.81
|
|
3/8
|
3-S20
|
LL3-S20
|
3/8-18
|
—
|
1.75
|
1.13
|
1.00
|
|
3/8
|
3-S20BS
|
LL3-S20BS
|
—
|
3/8-19
|
1.62
|
1.13
|
1.00
|
|
1/2
|
4-S25
|
LL4-S25
|
1/2-14
|
—
|
2.03
|
1.31
|
1.13
|
|
1/2
|
4-S25BS
|
LL4-S25BS
|
—
|
1/2-14
|
1.80
|
1.31
|
1.13
|
|
3/4
|
6-S30
|
LL6-S30
|
3/4-14
|
—
|
2.22
|
1.69
|
1.44
|
|
3/4
|
6-S30BS
|
—
|
—
|
3/4-14
|
2.03
|
1.69
|
1.44
|
|
1
|
8-S35
|
—
|
1-11 1/2
|
—
|
2.53
|
2.00
|
1.75
|
|
1
|
8-S35BS
|
—
|
—
|
1-11
|
2.37
|
2.00
|
1.75
|
|
Female End Connections
|
|||||||
|
BodySize
|
Part Number
|
Thread Size
|
Dimensions
|
||||
|
Brass
|
Stainless
|
NPTF
|
BSPP
|
A
|
B
|
Hex
|
|
|
1/8
|
1-S11
|
LL1-S11
|
1/8-27
|
—
|
1.06
|
0.69
|
0.50
|
|
1/8
|
1-S11BS
|
LL1-S11BS
|
—
|
1/8-28
|
1.03
|
0.69
|
0.56
|
|
1/4
|
2-S16
|
LL2-S16
|
1/4-18
|
—
|
1.50
|
0.94
|
0.81
|
|
1/4
|
2-S16BS
|
LL2-S16BS
|
—
|
1/4-19
|
1.50
|
0.94
|
0.81
|
|
3/8
|
3-S21
|
LL3-S21
|
3/8-18
|
—
|
1.59
|
1.13
|
1.00
|
|
3/8
|
3-S21BS
|
LL3-S21BS
|
—
|
3/8-19
|
1.59
|
1.13
|
1.00
|
|
1/2
|
4-S26
|
LL4-S26
|
1/2-14
|
—
|
1.91
|
1.31
|
1.13
|
|
1/2
|
4-S26BS
|
LL4-S26BS
|
—
|
1/2-14
|
1.91
|
1.31
|
1.13
|
|
3/4
|
6-S31
|
LL6-S31
|
3/4-14
|
—
|
2.06
|
1.69
|
1.44
|
|
3/4
|
6-S31BS
|
LL6-S31BS
|
—
|
3/4-14
|
2.06
|
1.69
|
1.44
|
|
1
|
8-S36
|
LL8-S36
|
1-11 1/2
|
—
|
2.31
|
2.00
|
1.75
|
|
1
|
8-S36BS
|
LL8-S36BS
|
—
|
1-11
|
2.33
|
2.00
|
1.75
|
|
1-1/4
|
10-S41*
|
LL10-S41
|
1 1/4-11 1/2
|
—
|
2.44
|
2.50
|
2.00
|
|
1-1/4
|
10-S41BS*
|
—
|
—
|
1 1/4-11
|
2.51
|
2.50
|
2.00
|
|
1-1/2
|
12-S46*
|
LL12-S46
|
1 1/2-11 1/2
|
—
|
2.88
|
3.13
|
2.63
|
|
1-1/2
|
12-S46BS*
|
LL12-S46BS
|
—
|
1 1/2-11
|
2.88
|
3.13
|
2.63
|
|
2
|
16-S51*
|
LL16-S51
|
2-11 1/2
|
—
|
3.09
|
3.75
|
3.00
|
|
2
|
16-S51BS*
|
LL16-S51BS
|
—
|
2-11
|
3.30
|
3.75
|
3.00
|
|
2-1/2
|
20-S56*
|
—
|
2 1/2-8
|
—
|
3.44
|
4.50
|
3.50
|
| * With Steel Sleeve |
|
hosetem Connections
|
|||||
|
Body Size
|
Part.No.
|
Hose.I.D.
|
Dimensions
|
||
|
Brass
|
Stainless
|
A
|
B
|
||
|
1/8
|
1-S12
|
LL1-S12
|
3/16"
|
1.41
|
0.69
|
|
1/8
|
1-S17
|
LL1-S17
|
1/4"
|
1.41
|
0.69
|
|
1/4
|
2-S17
|
LL2-S17
|
1/4"
|
2.13
|
0.94
|
|
3/8
|
3-S22
|
LL3-S22
|
3/8"
|
2.31
|
1.13
|
|
1/2
|
4-S27
|
LL4-S27
|
1/2"
|
2.66
|
1.31
|
|
3/4
|
6-S32
|
LL6-S32
|
3/4"
|
2.81
|
1.63
|
|
1
|
8-S37
|
LL8-S37
|
1"
|
2.94
|
2.00
|
| All dimensions in inches. |
 |
