Series WA 10000
Description:
Refrigerant and Fluid Transfer
Coupling Category
Two-Way Couplings
Manufacturer
Hansen
|
Coupling Dash
Size
|
Seal Material
|

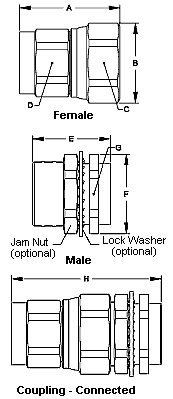

Dimensions (inches)
|
|||||||||
|
Female Half
|
Male Half
|
||||||||||
|
Part.No.
|
Overall Length
|
Maximum Diameter
|
Hex Size
|
Hex Size
|
Part.No.
|
Overall Length
|
Maximum Diameter
|
Hex Size
|
*.Connected Length (no
adapter)
|
||
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
||||
|
-8
|
HNBR
|
WA.10037.IO
|
1.66
|
1.30
|
1.18
|
1.02
|
WA.10034.IO
|
1.38
|
1.26
|
1.15
|
2.67
|
|
-8
|
Neoprene
|
WA.10037.MO
|
1.66
|
1.30
|
1.18
|
1.02
|
WA.10034.MO
|
1.38
|
1.26
|
1.15
|
2.67
|
|
-12
|
HNBR
|
WA.10057.IO
|
2.17
|
1.77
|
1.62
|
1.38
|
WA.10054.IO
|
1.73
|
1.77
|
1.62
|
3.33
|
|
-12
|
Neoprene
|
WA.10057.MO
|
2.17
|
1.77
|
1.62
|
1.38
|
WA.10054.MO
|
1.73
|
1.77
|
1.62
|
3.33
|
|
-16
|
HNBR
|
WA.10067.IO
|
2.40
|
2.21
|
1.97
|
1.77
|
WA.10064.IO
|
1.98
|
2.09
|
1.89
|
3.75
|
|
-16
|
Neoprene
|
WA.10067.MO
|
2.40
|
2.21
|
1.97
|
1.77
|
WA.10064.MO
|
1.98
|
2.09
|
1.89
|
3.75
|
| * To calculate the overall length of a connected coupling with adapters installed, add the exposed lengths of two adapters to the connected length with no adapter (Connected Length with Adapters = H + 2 x K). |
|
Coupling
Dash Size |
Maximum Bulkhead
Thickness (inches)
|
Assembly Torque,
lb-ft
|
||
|
With Lock
Washer |
Without Lock
Washer |
Adapter/Body
|
Male/Female
|
|
|
-8
|
0.16
|
0.28
|
25-30
|
15-20
|
|
-12
|
0.23
|
0.34
|
40-45
|
20-25
|
|
-16
|
0.22
|
0.28
|
50-55
|
25-30
|
| All dimensions in inches. |
 |
