Series 3RL - Sockets
Description:
3/8in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|

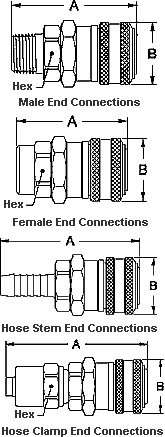

Male End Connections
|
Female End Connections
|
||||||||
|
Part.No.
|
Thread
|
Dimensions
|
Part.No.
|
Thread
|
Dimensions
|
||||
|
Size
|
A
|
B
|
HEX
|
Size
|
A
|
B
|
HEX
|
||
|
3-R15
|
1/4-18 NPTF
|
2.34
|
1.31
|
1.00
|
3-R16
|
1/4-18 NPTF
|
2.29
|
1.31
|
1.00
|
|
3-R20
|
3/8-18 NPTF
|
2.35
|
1.31
|
1.00
|
3-R21
|
3/8-18 NPTF
|
2.35
|
1.31
|
1.00
|
|
3-R25
|
1/2-14 NPTF
|
2.54
|
1.31
|
1.00
|
3-R26
|
1/2-14 NPTF
|
2.63
|
1.31
|
1.00
|
|
3-R30
|
3/4-14 NPTF
|
2.54
|
1.31
|
1.06
|
3-R31A
|
3/4-14 NPTF
|
2.66
|
1.31
|
1.19
|
|
hosetem End
Connections
|
Hose Clamp End
Connections
|
||||||||
|
Part.No.
|
Hose I.D.
|
Dimensions
|
Part.No.
|
Hose
|
Dimensions
|
||||
|
A
|
B
|
I.D.
|
O.D.
|
A
|
B
|
HEX
|
|||
|
3-R17
|
1/4"
|
2.82
|
1.31
|
3-R23D5
|
3/8"
|
9/16"
|
3.06
|
1.31
|
0.69
|
|
3-R195
|
5/16"
|
2.85
|
1.31
|
3-R23D7
|
3/8"
|
5/8"
|
3.06
|
1.31
|
0.75
|
|
3-R22
|
3/8"
|
2.89
|
1.31
|
3-R23D9
|
3/8"
|
11/16"
|
3.06
|
1.31
|
0.81
|
|
3-R27
|
1/2"
|
2.81
|
1.31
|
3-R23D11
|
3/8"
|
3/4"
|
3.06
|
1.31
|
0.88
|
|
3-R32
|
3/4"
|
3.66
|
1.31
|
3-R23D13
|
3/8"
|
13/16"
|
3.06
|
1.31
|
0.94
|
|
3-R23D15
|
3/8"
|
7/8"
|
3.06
|
1.31
|
1.00
|
||||
|
3-R28P13
|
1/2"
|
13/16"
|
3.66
|
1.31
|
0.94
|
||||
|
3-R28P15
|
1/2"
|
7/8"
|
3.66
|
1.31
|
1.00
|
||||
|
3-R28P17
|
1/2"
|
15/16"
|
3.66
|
1.31
|
1.06
|
||||
|
3-R28P19
|
1/2"
|
1"
|
3.66
|
1.31
|
1.13
|
||||
|
3-R33R23
|
3/4"
|
1-1/8"
|
3.79
|
1.31
|
1.25
|
||||
|
3-R33R25
|
3/4"
|
1-3/16"
|
3.79
|
1.31
|
1.31
|
||||
|
3-R33R27
|
3/4"
|
1-1/4"
|
3.79
|
1.31
|
1.38
|
||||
| † With Bleeder Ball Check – Reduces hose whip when disconnecting. All dimensions in inches. |
 |
