Series 700 - Plugs

Description:

1/4in. Nominal

Coupling Category

One-Way Couplings

Manufacturer

Hansen

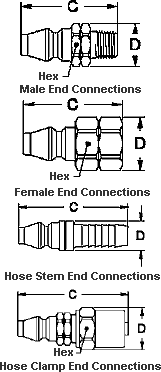

Male End Connections
Female End Connections
Part.No.
Thread
Dimensions
Part.No.
Thread
Dimensions
Brass
Size
C
D
HEX
Brass
Size
C
D
HEX
A1
1/8-27 NPTF
1.47
0.63
0.56
A2
1/4-18 NPTF
1.46
0.77
0.69
A3P
1/4-18 NPTF
1.63
0.63
0.56
A5-L
9/16-18‡
1.38
0.77
0.69
A4-L
9/16-18†
1.5
0.63
0.56


hosetem End Connections
Hose Clamp End Connections
Part.No.
Hose I.D.
Dimensions
Part.No.
Hose
Dimensions
Brass
C
D
Brass
I.D.
O.D.
C
D
HEX
A7
1/4"
2.06
0.56
7-B3
1/4"
1/2"
2.19
0.70
0.63
A8
5/16"
2.06
0.56
7-B5
1/4"
9/16"
2.19
0.77
0.69
A9
3/8"
2.10
0.56
7-B7
1/4"
5/8"
2.19
0.84
0.75

7-B11
1/4"
3/4"
2.19
0.98
0.88

† L.H. Thread - 30° Female Flare
‡ L.H. Thread - Inverted Flare
All dimensions in inches.
