Series 4000 - Plugs
Description:
3/8in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|

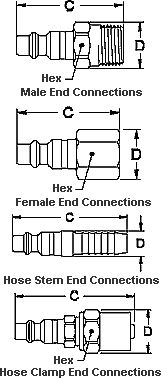

Male End Connections
|
Female End Connections
|
||||||||
|
Part.No.
|
Thread
|
Dimensions
|
Part.No.
|
Thread
|
Dimensions
|
||||
|
Steel
|
Size
|
C
|
D
|
HEX
|
Steel
|
Size
|
C
|
D
|
HEX
|
|
38
|
1/8-27 NPTF
|
1.72
|
0.72
|
0.63
|
41
|
1/4-18 NPTF
|
1.63
|
0.79
|
0.69
|
|
40
|
1/4-18 NPTF
|
1.88
|
0.72
|
0.63
|
41G†
|
1/4-18 NPTF
|
2.56
|
0.77
|
0.69
|
|
40G†
|
1/4-18 NPTF
|
2.65
|
0.77
|
0.69
|
43
|
3/8-18 NPTF
|
1.81
|
0.94
|
0.81
|
|
42
|
3/8-18 NPTF
|
1.88
|
0.79
|
0.69
|
43G†
|
3/8-18 NPTF
|
2.62
|
0.84
|
0.75
|
|
42G†
|
3/8-18 NPTF
|
2.65
|
0.77
|
0.69
|
45
|
1/2-14 NPTF
|
2.06
|
1.15
|
1.00
|
|
44
|
1/2-14 NPTF
|
2.09
|
1.01
|
0.88
|
Brass
|
||||
|
Brass
|
B-43
|
3/8-18 NPTF
|
1.81
|
0.91
|
0.81
|
||||
|
B-40
|
1/4-18 NPTF
|
1.88
|
0.70
|
0.63
|
|||||
|
B-42
|
3/8-18 NPTF
|
1.88
|
0.77
|
0.69
|
|||||
|
hosetem End
Connections
|
Hose Clamp End
Connections
|
||||||||
|
Part.No.
|
Hose I.D.
|
Dimensions
|
Part.No.
|
Hose
|
Dimensions
|
||||
|
Steel
|
C
|
D
|
Steel
|
I.D.
|
O.D.
|
C
|
D
|
HEX
|
|
|
404
|
1/4"
|
2.34
|
0.63
|
4-PB1
|
1/4"
|
15/32"
|
2.44
|
0.70
|
0.63
|
|
406
|
3/8"
|
2.34
|
0.63
|
4-PB3
|
1/4"
|
1/2"
|
2.44
|
0.70
|
0.63
|
|
408
|
1/2"
|
2.34
|
0.81
|
4-PB5
|
1/4"
|
9/16"
|
2.44
|
0.77
|
0.69
|
|
Brass
|
4-PB7
|
1/4"
|
5/8"
|
2.44
|
0.84
|
0.75
|
|||
|
B-406
|
3/8"
|
2.34
|
0.63
|
4-PB9
|
1/4"
|
11/16"
|
2.44
|
0.91
|
0.81
|
|
4-PB11
|
1/4"
|
3/4"
|
2.44
|
0.98
|
0.88
|
||||
|
4-PD5
|
3/8"
|
9/16"
|
2.56
|
0.77
|
0.69
|
||||
|
4-PD7
|
3/8"
|
5/8"
|
2.56
|
0.84
|
0.75
|
||||
|
4-PD9
|
3/8"
|
11/16"
|
2.56
|
0.91
|
0.81
|
||||
|
4-PD11
|
3/8"
|
3/4"
|
2.56
|
0.98
|
0.88
|
||||
|
4-PD13
|
3/8"
|
13/16"
|
2.56
|
1.05
|
0.94
|
||||
|
4-PD15
|
3/8"
|
7/8"
|
2.56
|
1.12
|
1.00
|
||||
|
4-PP13
|
1/2"
|
13/16"
|
3.25
|
1.05
|
0.94
|
||||
|
4-PP15
|
1/2"
|
7/8"
|
3.25
|
1.12
|
1.00
|
||||
|
4-PP17
|
1/2"
|
15/16"
|
3.25
|
1.19
|
1.06
|
||||
|
4-PP19
|
1/2"
|
1"
|
3.25
|
1.26
|
1.13
|
||||
| † With Bleeder Ball Check – Reduces hose whip when disconnecting. |
| All dimensions in inches. |
 |
