Series 3000 - Sockets

Description:

1/4in. Nominal

Coupling Category

One-Way Couplings

Manufacturer

Hansen

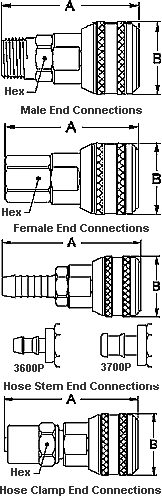

Male End Connections
Female End Connections
Part No.
Thread
Dimensions
Part No.
Thread
Dimensions
Brass
Size
A
B
HEX
Brass
Size
A
B
HEX
2900
1/8-27 NPTF
2.11
1.19
0.69
2800
1/8-27 NPTF
1.95
1.19
0.69
3100
1/4-18 NPTF
2.26
1.19
0.69
3000
1/4-18 NPTF
2.17
1.19
0.69
3300
3/8-18 NPTF
2.26
1.19
0.69
3200
3/8-18 NPTF
2.23
1.19
0.75
3000-43
7/16–20*
2.20
1.19
0.69

3000-63
5/8–18*
2.33
1.19
0.69


hosetem End Connections
Hose Clamp End Connections
Part No.
Hose I.D.
Dimensions
Part No.
Hose
Dimensions
Brass
A
B
Brass
I.D.
O.D.
A
B
HEX
3600
1/4"
2.70
1.19
3-SA0
3/16"
7/16"
2.73
1.19
0.56
3600P‡
1/4"
2.48
1.19
3-SA3
3/16"
1/2"
2.73
1.19
0.63
3700
3/8"
2.69
1.19
3-SB1
1/4"
15/32"
2.79
1.19
0.63
3700P‡
3/8"
2.58
1.19
3-SB3
1/4"
1/2"
2.79
1.19
0.63
3800
5/16"
2.70
1.19
3-SB5
1/4"
9/16"
2.79
1.19
0.69

3-SB7
1/4"
5/8"
2.79
1.19
0.75

3-SB9
1/4"
11/16"
2.79
1.19
0.81

3-SB11
1/4"
3/4"
2.79
1.19
0.88

3-SC5
5/16"
9/16"
2.86
1.19
0.69

3-SC7
5/16"
5/8"
2.86
1.19
0.75

3-SC9
5/16"
11/16"
2.86
1.19
0.81

3-SD5
3/8"
9/16"
2.92
1.19
0.69

3-SD7
3/8"
5/8"
2.92
1.19
0.75

3-SD9
3/8"
11/16"
2.92
1.19
0.81

3-SD11
3/8"
3/4"
2.92
1.19
0.88

3-SD13
3/8"
13/16"
2.92
1.19
0.94

*45° Male Flare
‡For use with push-on style hose.
All dimensions in inches.
Series 3000 - Sockets
