Series 1000 - Sockets
Description:
1/4in. Nominal
Coupling Category
One-Way Couplings
Manufacturer
Hansen
|

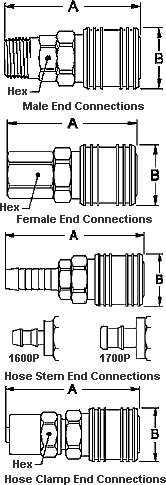

Male End Connections
|
Female End Connections
|
||||||||
|
Part No.
|
Thread
|
Dimension
|
Part No.
|
Thread
|
Dimensions
|
||||
|
Brass
|
Size
|
A
|
B
|
HEX
|
Size
|
A
|
B
|
HEX
|
|
|
900
|
1/8-27 NPTF
|
2.07
|
1.0
|
0.69
|
800
|
1/8-27 NPTF
|
1.91
|
1.0
|
0.69
|
|
1100
|
1/4-18 NPTF
|
2.22
|
1.0
|
0.69
|
1000
|
1/4-18 NPTF
|
1.91
|
1.0
|
0.69
|
|
1300
|
3/8-18 NPTF
|
2.22
|
1.0
|
0.69
|
1200
|
3/8-18 NPTF
|
2.19
|
1.0
|
0.75
|
|
1000-43
|
7/16–20*
|
2.16
|
1.0
|
0.69
|
Stainless
|
||||
|
1000-63
|
5/8–18*
|
2.29
|
1.0
|
0.69
|
LL-1000
|
1/4-18 NPTF
|
1.91
|
1.0
|
0.69
|
|
Stainless
|
|||||||||
|
LL-1100
|
1/4-18 NPTF
|
2.22
|
1.0
|
0.69
|
|||||
|
hosetem End
Connections
|
|||
|
Part No.
|
Hose I.D.
|
Dimensions
|
|
|
A
|
B
|
||
|
1600
|
1/4"
|
2.66
|
1.0
|
|
1600P‡
|
1/4"
|
2.44
|
1.0
|
|
1700
|
3/8"
|
2.65
|
1.0
|
|
1700P‡
|
3/8"
|
2.54
|
1.0
|
|
1800
|
5/16"
|
2.66
|
1.0
|
|
Hose Clamp End
Connections
|
|||||
|
Part No.
|
Hose
|
Dimensions
|
|||
|
I.D.
|
O.D.
|
A
|
B
|
HEX
|
|
|
1-SA0
|
3/16"
|
7/16"
|
2.69
|
1.0
|
0.56
|
|
1-SA3
|
3/16"
|
1/2"
|
2.69
|
1.0
|
0.63
|
|
1-SB1
|
1/4"
|
15/32"
|
2.75
|
1.0
|
0.63
|
|
1-SB3
|
1/4"
|
1/2"
|
2.75
|
1.0
|
0.63
|
|
1-SB5
|
1/4"
|
9/16"
|
2.75
|
1.0
|
0.69
|
|
1-SB7
|
1/4"
|
5/8"
|
2.75
|
1.0
|
0.75
|
|
1-SC5
|
5/16"
|
9/16"
|
2.82
|
1.0
|
0.69
|
|
1-SC7
|
5/16"
|
5/8"
|
2.82
|
1.0
|
0.75
|
|
1-SC9
|
5/16"
|
11/16"
|
2.82
|
1.0
|
0.81
|
|
1-SD5
|
3/8"
|
9/16"
|
2.88
|
1.0
|
0.69
|
|
1-SD7
|
3/8"
|
5/8"
|
2.88
|
1.0
|
0.75
|
|
1-SD9
|
3/8"
|
11/16"
|
2.88
|
1.0
|
0.81
|
|
1-SD11
|
3/8"
|
3/4"
|
2.88
|
1.0
|
0.88
|
| * 45° Male Flare ‡ For use with push-on style hose. |
| All dimensions in inches. |
 |
