Dixon Wilkerson Lubricator Accessories

Description:

Bowls - Drains - Sleeves - Sight Domes - Shut-Off Valves - Adapters - Blocks - Brackets

Coupling Category

Air Fittings

Manufacturer

Dixon Air Fittings

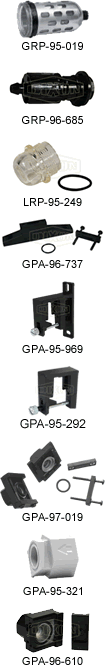

Bowls and Bowl Guards

Used On Description Part #
L03 metal bowl with manual drain plastic bowl with
no drain
GRP-96-506
PS421
L08 metal bowl with manual drain plastic bowl with guard
and manual drain
GRP-96-714
LRP-96-736
L16 metal bowl with sight glass and manual drain plastic bowl,
bowl guard, manual drain plastic bowl with no drain
GRP-95-133
GRP-95-019
LRP-96-937
L18  metal bowl with sight glass, manual drain plastic bowl,
bowl guard, manual drain
GRP-96-636
LRP-96-701
L26 metal bowl with sight glass and manual drain
plastic bowl with no drain
GRP-95-931
LRP-96-938
L28 metal bowl with sight glass, manual drain plastic
bowl, bowl guard, manual drain
GRP-96-644
LRP-96-702
L30, L40 metal bowl with sight glass and manual drain GRP-95-676
L30, L40, L50 plastic bowl with no drain LRP-96-940


Drains

Used On Description Part #
L16, L26,
L30, L40,
L50
manual pet cock drain for use with metal bowl units GRP-95-182
L18, L28 manual drain GRP-96-685


Sight Domes and Fill Plugs

Used On Description Part #
L00, L08,
L16, L26
sight dome kit: dome and O-ring LRP-95-239
L08 fill plug kit: fill plug and O-ring LRP-96-730
L08, L18, L28
sight dome kit (old style -08) LRP-96-710
L16, L26 sight glass kit for metal bowls GRP-95-079
L16, L26, L30 fill plug kit: fill plug and O-ring LRP-95-253
L18, L28 sight dome assembly (new style) LRP-96-310
L30, L40, L50 sight dome kit: dome and O-ring LRP-95-249
L40, L50 fill plug kit: fill plug and O-ring LRP-95-250


Mounting Brackets

Used On Description Part #
L00 mounting bracket (type L) GRP-95-754
L03 mounting bracket PS419
L08 mounting bracket (type T) with joiner set and
port O-ring
GPA-96-737
mounting bracket (type C) GPA-97-010
joiner set and port O-ring GPA-96-738
L16 mounting bracket (type L) GPA-95-016
L18 mounting bracket (type C) GPA-96-604
mounting bracket (type L) GPA-96-606
L18, L28 mounting bracket (type T) GPA-96-602
mounting bracket (type T) with joiner set and port O-ring GPA-96-603
joiner set with port O-ring GPA-96-614
bracket with joiner set and port O-ring GPA-96-754
L26 mounting bracket (type L) GPA-95-946
L28 mounting bracket (type C) GPA-96-605
mounting bracket (type L) GPA-96-607
L30 wall mount, U-bolt pipe clamp GRP-95-734


Modular Sleeve with Wall Mounting Brackets

  • Designed for mounting a single unit or combination of units directly to the wall.
  • The sleeve and mounting bracket can be ordered assembled from the factory, or just the mounting bracket alone to be used on existing modular sleeves.
Used On Description Part #
L16, L26 bracket GPA-95-968
sleeve and bracket GPA-95-969


Modular Sleeve

  • Unique modular sleeve design easily and quickly connects one or more units and accessories together without pipe nipples.
  • Hand tightening the threaded pin provides a tight seal between the units.
Used On Description Part #
L16, L26 modular sleeve GPA-95-292


End Blocks

  • When used with the modular sleeve, end blocks allow a single unit or a combination of units to be piped into the air system in the modular mode.
  • allows ease of unit servicing or replacement without disturbing the air line connections
  • set of 2 blocks (inlet and outlet)
Used On Description Part #
L08 end block set 1/4" NPT GPA-97-019
end block set 3/8" NPT GPA-97-020


Modular Blocks


Manifold Block
  • allows easy design flexibility
  • can be installed after the filter or regulator, providing three additional 1/4" NPT tapped  auxiliary ports
  • inlet/outlet ports are 1/2" non-tapped
  • 1-17/32" width


End Block
  • When used with the modular sleeve, end blocks allow a single unit or a combination of units to be piped into the air system in the modular mode.
  • allows ease of unit servicing or replacement without disturbing the air line connections
  • set of 2 blocks (inlet and outlet)
Used On Description Part #
L16, L26 manifold block, three 1/4" NPT auxiliary ports GPA-95-919
end block, 1/4" NPT GPA-95-223
end block, 3/8" NPT GPA-95-224
end block, 1/2" NPT GPA-95-225
end block, 3/4" NPT GPA-95-320
end block, 1" NPT GPA-95-321
L18, L28 end block, 1/4" NPT GPA-96-610
end block, 3/8" NPT GPA-96-611
end block, 1/2" NPT GPA-96-612
end block, 3/4" NPT GPA-96-613
end block, G1/4" GPA-96-620
end block, G3/8" GPA-96-621
end block, G1/2" GPA-96-622
end block, G3/4" GPA-96-623


Modular Adapters

  • When used with the modular sleeve, adapter inserts allow a single unit or a combination of units to be piped into the air system in the modular mode.
  • allows ease of unit servicing or replacement without disturbing the air line connections
  • set of 2 blocks
Used On Description Part #
L16, L26 1/4" NPT pipe adapter GPA-95-035
3/8" NPT pipe adapter GPA-95-036
1/2" NPT pipe adapter GPA-95-037


Modular Shut-Off Valves

  • can be installed immediately upstream of a single unit or combination of units
  • secured to the unit with a modular sleeve or modular sleeve wall mounting bracket
  • ball-type valve operates with a 1/4 turn from open to shut position
  • useful for isolating and depressurizing a downstream unit requiring maintenance or
    replacement
  • can be locked in the open position
  • left to right flow
Used On Description Part #
L16, L26 1/4" NPT safety lock-out valve GPA-95-096
3/8" NPT safety lock-out valve GPA-95-097
1/2" NPT safety lock-out valve GPA-95-098
