Dixon Wilkerson Filter Accessories

Description:

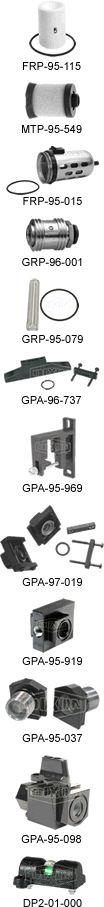

Elements - Bowls - Drains - Brackets - Sleeves - Blocks - Adapters - Shut-Off Valves

Coupling Category

Air Fittings

Manufacturer

Dixon Air Fittings

Elements


Used On Description Part #
F00 5 micron element FRP-95-235
F03 5 micron element PS403
F08 5 micron element FRP-96-729
F16 5 micron element FRP-95-160
F18 5 micron element FRP-96-639
F26 5 micron element FRP-95-115
F28 5 micron element FRP-96-653
F30 5 micron element FRP-95-209
F35 5 micron element FRP-95-505
F42 5 micron element FRP-95-566





Elements


Used On Description Part #
M16, M26, M30 type B element (0.5 micron) MSP-95-989
M16 type C element (0.01 micron) MTP-95-548
M26 type C element (0.01 micron) MTP-95-549
M30 type C element (0.01 micron) MTP-95-551
M35 type C element (0.01 micron) MTP-95-502


Gel Refills


Used On Description Part #
X03 8 bags of silica gel refill DRP-85-059


Bowls and Bowl Guards

Used On Description Part #
F00 plastic bowl with check valve drain GRP-96-310
metal bowl with manual drain GRP-96-506
F03 plastic bowl with piston drain PS408B
metal bowl with manual drain PS447B
F08 plastic bowl with guard and manual drain GRP-96-712
metal bowl with manual drain GRP-96-714
F16, M16 plastic bowl and metal bowl guard with flex tip drain FRP-95-014
plastic bowl and metal bowl guard with auto drain FRP-95-015
metal bowl with sight glass and manual drain GRP-95-133
metal bowl with auto drain FRP-95-950
F18 plastic bowl, bowl guard, manual drain GRP-96-634
plastic bowl, bowl guard, auto drain GRP-96-635
metal bowl with sight glass, manual drain GRP-96-636
metal bowl with sight glass, auto float drain GRP-96-637
F26, M26 plastic bowl and metal bowl guard with flex tip drain GRP-95-935
plastic bowl and metal bowl guard with auto drain GRP-95-948
metal bowl with sight glass and manual drain GRP-95-931
metal bowl with auto drain GRP-95-960
F28 plastic bowl with guard, auto drain GRP-96-643
plastic bowl, bowl guard, manual drain GRP-96-642
metal bowl, with sight glass, manual drain GRP-96-644
metal bowl with sight glass, auto float drain GRP-96-645
F30, M30 plastic bowl and metal bowl guard with manual drain FRP-95-832
plastic bowl and metal bowl guard with auto drain FRP-95-775
plastic bowl with flex tip drain FRP-96-315
metal bowl with sight glass and manual drain GRP-95-676
metal bowl with auto drain GRP-95-970


Auto and Manual Drains

Used On Description Part #
F00 automatic drain GRP-95-584
manual drain GRP-96-102
F08 automatic drain GRP-96-716
F16, F18, F26, F28, F30, F35, M16, M26, M30, M32, M35 automatic drain with flourocarbon seal GRP-95-981
F16, F18, F26, F28, F30, M16, M26, M30 automatic float drain with a nitrile seal GRP-95-973
F16, F18, F26, F28, F30, F35, M16, M26, M30, M35 manual override drain GRP-96-001
F16, FF26, F30, M16, M26, M30 manual pet cock drain for use with metal bowl units GRP-95-182
F16, F26, f30, M16, M26, M30 manual flex tip drain FRP-95-610
F18, F28 manual drain GRP-96-685


Sight Glass

Used On Description Part #
M16, M26 sight glass kit for metal bowls GRP-95-079


Mounting Brackets and Joiner Sets

Used On Description Part #
F00 mounting bracket (type L) GRP-95-754
F03 mounting bracket PS417B
F08 mounting bracket (type T) with joiner set and port O-ring GPA-96-737
mounting bracket (type C) GPA-97-010
joiner set and port O-ring GPA-96-738
F16, M16 mounting bracket (type L) GPA-95-016
F18 mounting bracket (type C) GPA-96-604
mounting bracket (type L) GPA-96-606
F18, F28 mounting bracket (type T) GPA-96-602
mounting bracket (type T) with joiner set and port O-ring GPA-96-603
joiner set and port O-ring with nitrile O-ring GPA-96-601
joiner set with port O-ring with fluorocarbon O-rings GPA-96-614
bracket with joiner set and port O-ring GPA-96-754
F26, M26 mounting bracket (type L) GPA-95-946
F28 mounting bracket (type C) GPA-96-605
mounting bracket (type L) GPA-96-607
F30 wall mount, U-bolt pipe clamp GRP-95-734


Modular Sleeve with Wall Mounting Brackets

  • Designed for mounting a single unit or combination of units directly to the wall.
  • The sleeve and mounting bracket can be ordered assembled from the factory, or just the mounting bracket alone to be used on existing modular sleeves.

Used On Description Part #
F16, F26 bracket GPA-95-968
sleeve and bracket GPA-95-969


Modular Sleeve

  • Unique modular sleeve design easily and quickly connects one or more units and accessories together without pipe nipples.
  • Hand tightening the threaded pin provides a tight seal between the units.

Used On Description Part #
F16, F26 modular sleeve GPA-95-292


End Blocks

  • When used with the modular sleeve, end blocks allow a single unit or a combination of units to be piped into the air system in the modular mode.
  • allows ease of unit servicing or replacement without disturbing the air line connections
  • set of 2 blocks (inlet and outlet)

Used On Description Part #
F08 end block set, 1/4" NPT GPA-97-019
end block set, 3/8" NPT GPA-97-020


Modular Blocks

Manifold Block

  • allows easy design flexibility
  • can be installed after the filter or regulator, providing three additional 1/4" NPT tapped
  • auxiliary ports
  • inlet/outlet ports are 1/2" non-tapped
  • 1-17/32" width

End Block

  • When used with the modular sleeve, end blocks allow a single unit or a combination of units to be piped into the air system in the modular mode.
  • allows ease of unit servicing or replacement without disturbing the air line connections
  • set of 2 blocks (inlet and outlet)

Used On Description Part #
F16, M16, F26, M26 manifold block, three 1/4" NPT auxiliary ports GPA-95-919
end block, 1/4" NPT GPA-95-223
end block, 3/8" NPT GPA-95-224
end block, 1/2" NPT GPA-95-225
end block, 3/4" NPT GPA-95-320
end block, 1" NPT GPA-95-321
F18, F28 end block, 1/4" NPT GPA-96-610
end block, 3/8" NPT GPA-96-611
end block, 1/2" NPT GPA-96-612
end block, 3/4" NPT GPA-96-613
end block, G1/4" GPA-96-620
end block, G3/8" GPA-96-621
end block, G1/2" GPA-96-622
end block, G3/4" GPA-96-623


Modular Adapters

  • When used with the modular sleeve, adapter inserts allow a single unit or a combination of units to be piped into the air system in the modular mode.
  • allows ease of unit servicing or replacement without disturbing the air line connections
  • set of 2 blocks
Used On Description Part #
F16, M16,
F26, M26
1/4" NPT pipe adapter GPA-95-035
3/8" NPT pipe adapter GPA-95-036
1/2" NPT pipe adapter GPA-95-037


Modular Shut-Off Valves

  • can be installed immediately upstream of a single unit or combination of units
  • secured to the unit with a modular sleeve or modular sleeve wall mounting bracket
  • ball-type valve operates with a 1/4 turn from open to shut position
  • useful for isolating and depressurizing a downstream unit requiring maintenance or replacement
  • can be locked in the open position
  • left to right flow
Used On Description Part #
F16, F26 1/4" NPT safety shut-off valve GPA-95-096
3/8" NPT safety shut-off valve GPA-95-097
1/2" NPT safety shut-off valve GPA-95-098


Differential Pressure Indicators

  • used to replace damaged indicators on filters and modular coalescing filters
  • Pressure loss changes color of indicator window from green to red.
Used On Description Part #
M16, M26, M30, M32 indicator DP2-01-000
F35.M35 indicator DP2-01-001
