Dixon Dual Lock Quick-Acting Couplings
Description:
Male/Female Pipe Thread - Hose End Barb with Locking Sleeve - Male/Female Pipe Thread with Locking Sleeve
Coupling Category
Air Fittings
Manufacturer
Dixon Air Fittings
- interchanges with National A type, Dixon Quick Coupling P type and Thor PHC series couplings
- PM and PF series must be used with mating locking sleeve fittings.
- trivalent chrome plated
- spring loaded interlocking engagement
- full opening permits full flow to tool
- optional locking key prevents sleeve retraction
- 300 PSI working pressure at ambient temperature (70°F)

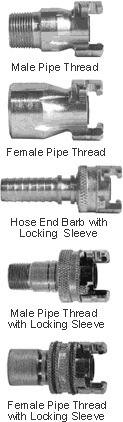

Male Pipe Thread
Body Size |
NPT Thread Size |
Material | Part # |
1/2" | 3/8" | plated steel | PM6 |
1/2" | 1/2" | plated steel | PM8 |
1/2" | 3/4" | plated steel | PM12 |
1/2" | 1" | plated steel | PM16 |
1/2" | 1/2" | brass | PMB8 |
1/2" | 3/4" | brass | PMB12 |
1/2" | 1" | brass | PMB16 |
1/2" | 3/4" | 303 stainless | PM12SS |
Female Pipe Thread
Body Size |
NPT Thread Size |
Material | Part # |
1/2" | 3/8" | plated steel | PF6 |
1/2" | 1/2" | plated steel | PF8 |
1/2" | 3/4" | plated steel | PF12 |
1/2" | 1" | plated steel | PF16 |
1/2" | 1/2" | brass | PFB8 |
1/2" | 3/4" | brass | PFB12 |
1/2" | 1" | brass | PFB16 |
1/2" | 3/4" | 303 stainless | PF12SS |
Hose End Barb with Locking Sleeve
Body Size |
Hose ID Size |
Material | Part # |
1/2" | 3/8" | plated steel | PHL6 |
1/2" | 1/2" | plated steel | PHL8 |
1/2" | 3/4" | plated steel | PHL12 |
1/2" | 1" | plated steel | PHL16 |
1/2" | 3/4" | brass | PHLB12 |
1/2" | 1" | brass | PHLB16 |
1/2" | 3/4" | 303 stainless | PHL12SS |
Male Pipe Thread with Locking Sleeve
Body Size |
NPT Thread Size |
Material | Part # |
1/2" | 3/8" | plated steel | PML6 |
1/2" | 1/2" | plated steel | PML8 |
1/2" | 3/4" | plated steel | PML12 |
1/2" | 3/4" | 303 stainless | PML12SS |
Female Pipe Thread with Locking Sleeve
Body Size |
NPT Thread Size |
Material | Part # |
1/2" | 1/2" | plated steel | PFL8 |
1/2" | 3/4" | plated steel | PFL12 |
1/2" | 3/4" | 303 stainless | PFL12SS |
Replacement Gaskets
Buna-N Part # |
Viton® Part # |
855206 | 452963 |
Locking Key
Body Size |
Steel Part # |
1/2" | 855231 |
fits couplings with locking sleeve
