Dixon Brass Push-In Fittings

Description:

Elbows - Unions - Connectors - Tees

Coupling Category

Air Fittings

Manufacturer

Dixon Air Fittings

  • Quick connect: simply push tubing in, no tools required. Saves up to 75% of assembly time versus the standard compression fittings.
  • Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
  • reusable: connect and disconnect numerous times
  • Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
  • positive seal: no leaks, after tubing is inserted, seal is made
  • secure tube retention: pulling on tubing only serves to tighten the connection
  • Pre-applied PTFE based pipe sealant on all male pipe threads saves customer additional labor
  • Working pressure: fittings are suitable for use up to the maximum working pressure of the plastic tubing used. Also suitable for vacuum service.
  • working temperature: - 10°F to 200°F

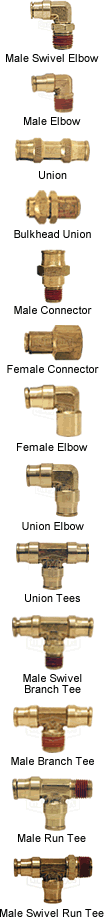

Male Swivel Elbows


tube to male NPTF

Male Elbows


tube to male NPTF
Tube
OD		 Male
NPTF		 Forged Brass
Part#
1/8" 1/8" 69S4x4
5/32" 10-32* 69S5x10
5/32" 1/8" 69S5x4
5/32" 1/4" 69S5x8
1/4" 10-32 * 69S8x10
1/4" 1/8" 69S8x4
1/4" 1/4" 69S8x8
1/4" 3/8" 69S8x12
3/8" 1/8" 69S12x4
3/8" 1/4" 69S12x8
3/8" 3/8" 69S12x12
3/8" 1/2" 69S12x16
1/2" 3/8" 69S16x12
1/2" 1/2" 69S16x16
* UNF - Straight thread, supplied
with gasket
Tube
OD		 Male
NPTF		 Forged Brass
Part#
1/8" 1/8" 694x4
5/32" 1/8" 695x4
3/16" 1/8" 696x4
1/4" 1/8" 698x4
1/4" 1/4" 698x8
1/4" 3/8" 698x12
3/8" 1/8" 6912x4
3/8" 1/4" 6912x8
3/8" 3/8" 6912x12
1/2" 1/4" 6916x8
1/2" 3/8" 6916x12


Unions


tube to tube

Bulkhead Unions


tube to male thread
Tube
OD		 Brass
Part#
1/8" 624
5/32" 625
1/4" 628
3/8" 6212
1/2" 6216
Tube
OD		 Thread Brass
Part#
1/8" 7/16-20 824
5/32" 7/16-20 825
3/16" 1/2-20 826
1/4" 1/2-20 828
3/8" 3/4-16 8212
1/2" 15/16-16 8216




Male Connectors


tube to male NPTF

Female Connectors


tube to female NPTF
Tube
OD		 Male
NPTF		 Brass
Part#
1/8" 10-32* 684x10
1/8" 1/8" 684x4
5/32" 10-32* 685x10
5/32" 1/8" 685x4
5/32" 1/4" 685x8
3/16" 10-32* 686x10
3/16" 1/8" 686x4
1/4" 10-32* 688x10
1/4" 1/8" 688x4
1/4" 1/4" 688x8
1/4" 3/8" 688x12
3/8" 1/8" 6812x4
3/8" 1/4" 6812x8
3/8" 3/8" 6812x12
3/8" 1/2" 6812x16
1/2" 1/4" 6816x8
1/2" 3/8" 6816x12
1/2" 1/2" 6816x16
* UNF - Straight thread, supplied
with gasket
Tube
OD		 Female
NPTF		 Brass
Part#
1/8" 1/8" 664x4
5/32" 1/8" 665x4
1/4" 1/8" 668x4
1/4" 1/4" 668x8
3/8" 1/4" 6612x8
3/8" 3/8" 6612x12


Female Elbows


tube to female NPTF

Union Elbows


tube to tube
Tube
OD		 Female
NPTF		 Forged Brass
Part #
5/32" 1/8" 705x4
1/4" 1/8" 708x4
1/4" 1/4" 708x8
3/8" 1/4" 7012x8
Tube
OD		 Forged Brass
Part#
1/8" 654
5/32" 655
1/4" 658
3/8" 6512
1/2" 6516


Union Tees


tube to tube
Tube
OD 		Forged Brass
Part #
1/8" 644
5/32" 645
3/16" 646
1/4" 648
3/8" 6412
1/2" 6416


Male Swivel Branch Tees


tube to male NPTF

Male Branch Tees


tube to male NPTF
Tube
OD		 Male
NPTF		 Brass
Part#
1/8" 1/8" 72S4x4
5/32" 10-32* 72S5x10
5/32" 1/8" 72S5x4
1/4" 1/8" 72S8x4
1/4" 1/4" 72S8x8
3/8" 1/4" 72S12x8
3/8" 3/8" 72S12x12
1/2" 3/8" 72S16x12
1/2" 1/2" 72S16x16
Tube
OD		 Male
NPTF		 Brass
Part#
1/8" 1/8" 724x4
5/32" 1/8" 725x4
3/16" 1/8" 726x4
1/4" 1/8" 728x4
1/4" 1/4" 728x8
3/8" 1/8" 7212x4
3/8" 1/4" 7212x8
3/8" 3/8" 7212x12
1/2" 3/8" 7216x12


Male Run Tees


tube to male NPTF

Male Swivel Run Tees


tube to male NPTF
Tube
OD		 Male
NPTF		 Brass
Part#
CO CO 714x4
5/32" 1/8" 715x4
3/16" 1/8" 716x4
1/4" 1/8" 718x4
1/4" 1/4" 718x8
3/8" 1/8" 7112x4
3/8" 1/4" 7112x8
3/8" 3/8" 7112x12
1/2" 3/8" 7116x12
Tube
OD		 Male
NPTF		 Brass
Part#
1/8" 1/8" 71S4x4
5/32" 10-32* 71S5x10
5/32" 1/8" 71S5x4
1/4" 1/8" 71S8x4
1/4" 1/4" 71S8x8
3/8" 1/4" 71S12x8
3/8" . 3/8" 71S12x12
1/2" 3/8" 71S16x12
1/2" 1/2" 71S16x16
* UNF - Straight thread, supplied
with gasket.
Dixon Brass Push-In Fittings
   WARNING: Cancer and
   Reproductive Harm -
   www.P65Warnings.ca.gov
