Dixon Tube Hangers

Description:

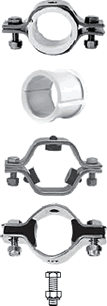

Hex with Sleeve - Hex with Grommets - Round - Sleeves - Nuts and Bolts

Coupling Category

Sanitary Fittings

Manufacturer

Dixon Sanitary Fittings

Hex Tube Hanger with Sleeve - B24PS

Hex Tube Hanger with Sleeve - B24PS


  • supplied with an ABS plastic sleeve to contain the tube
  • The ABS plastic sleeve is rated for operating temperatures up to 230°F
Tube Dimensions 304 Stainless Steel
OD A B Part #
1/2" 2.800 1.150 B24PS-G50
3/4" 2.800 1.150 B24PS-G75
1" 3.425 1.450 B24PS-G100
1-1/2" 4.000 2.125 B24PS-G150
2" 4.500 2.500 B24PS-G200
2-1/2" 4.950 3.125 B24PS-G250
3" 5.500 3.750 B24PS-G300
4" 6.950 4.750 B24PS-G400
5" 8.063 5.625 B24PS-G500
6" 9.250 6.625 B24PS-G600
8" 11.500 8.625 B24PS-G800


Sleeves - 13PS

Sleeves - 13PS


  • maximum temperature: 230°F
  • high temperature sleeves are available
Size ABS Part # Size ABS Part #
1/2" 13PS-50 3" 13PS-300
3/4" 13PS-75 4" 13PS-400
1" 13PS-100 5" 13PS-500
1-1/2" 13PS-150 6" 13PS-600
2" 13PS-200 8" 13PS-800
2-1/2" 13PS-250  - -


Hex Tube Hanger with Grommets - B24RG

Hex Tube Hanger with Grommets - B24RG


  • supplied with three nitrile grommets to contain the tube
  • replacement grommets are available
  • The nitrile grommets have a maximum operating temperature of 230°F
Tube Dimensions 304 Stainless Steel
OD A B Part #
1/2" - 3/4" 3.425 1.450 B24RG-G75
1" 3.425 1.450 B24RG-G100
1-1/2" 4.000 2.125 B24RG-G150
2" 4.500 2.500 B24RG-G200
2-1/2" 4.950 3.125 B24RG-G250
3" 5.500 3.750 B24RG-G300
4" 6.950 4.750 B24RG-G400
6" 9.250 6.625 B24RG-G600
8" 11.500 8.625 B24RG-G800


Round Tube Hanger - B24RPH

Round Tube Hangers - B24RPH


  • supplied with shaped s that conform to the tube, cutting down on movement and vibration
  • The nitrile s have a maximum operating temperature of 230°F
Tube Dimensions 304 Stainless Steel
with nitrile
OD A B Part #
1/2" 2.75 1.125 B24RPH-G50
3/4" 2.75 1.125 B24RPH-G75
1" 3.31 1.500 B24RPH-G100
1-1/2" 3.81 2.000 B24RPH-G150
2" 4.25 2.562 B24RPH-G200
2-1/2" 5.00 3.000 B24RPH-G250
3" 5.50 3.562 B24RPH-G300
4" 6.50 4.688 B24RPH-G400


Nuts and Bolts - 13NHN


  • All size hex hangers with grommets and round hangers 1" to 4" use 13NHN-G100-600 fastener sets
  • 1/2" and 3/4" round and sleeved hangers use 13NHN-G75 fastener sets
  • 2 nuts and bolts supplied to a set
Tube Description 304 Stainless Steel
OD Part #
1/2" - 3/4 1/4-20 x 3/4" bolt with nylock nut 13NHN-G75
1" - 12" 5/16-18 x 1" bolt with nylock nut 13NHN-G100-600
Dixon Tube Hangers
