Dixon D.O.T. Push-In Fittings - page2

Description:

Connectors - Elbows - Tees - Unions - Reducer/Expander

Coupling Category

Air Fittings

Manufacturer

Dixon Air Fittings

  • materials of construction:
    • body is composite; brass collet; stainless steel tube support; threads are brass
    • Buna-N O-ring
  • pressure range: up to 250 PSI at ambient temperature
  • working temperature: -40°F to 200°F
  • suitable fluids: compressed air only (lubricated or nonlubricated)
  • complies with the performance requirements of D.O.T FMVSS 571.106 (SAE J1131) and SAE J2494-3
  • These fittings are designed for use on all pneumatic circuits other than air brake assemblies between the frame and axle or between towed and towing vehicle. Safety Alert - Hose, Couplings, and Hose Assemblies

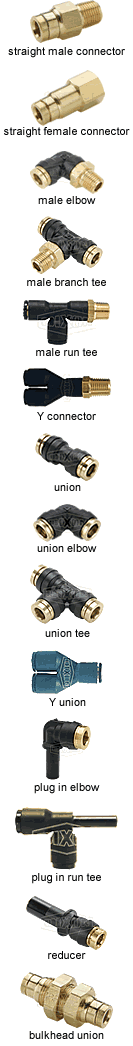

Straight Male Connectors


tube to male NPT

Straight Female Connectors


tube to female NPT
Tube
OD		 Male
NPTF		 Part #
5/32" 1/8" 31150411DOT
5/32" 1/4" 31150414DOT
3/16" 1/8" 31155511DOT
3/16" 1/4" 31155514DOT
1/4" 1/8" 31155611DOT
1/4" 1/4" 31155614DOT
1/4" 3/8" 31155618DOT
3/8" 1/8" 31156011DOT
3/8" 1/4" 31156014DOT
3/8" 3/8" 31156018DOT
3/8" 1/2" 31156022DOT
1/2" 1/4" 31156214DOT
1/2" 3/8" 31156218DOT
1/2" 1/2" 31156222DOT
Tube
OD		 Female
NPTF		 Part #
5/32" 1/8" 31140411DOT
3/16" 1/8" 31145511DOT
1/4" 1/8" 31145611DOT
1/4" 1/4" 31145614DOT
3/8" 1/4" 31146014DOT
3/8" 3/8" 31146018DOT
• complies with performance requirements of SAE J2494


Male Elbows


tube to male NPT

Male Branch Tees


tube to male NPT to tube
Tube
OD		 Male
NPTF		 Part #
5/32" 1/8" 31090411DOT
3/16" 1/8" 31095511DOT*
1/4" 1/8" 31095611DOT
1/4" 1/4" 31095614DOT
1/4" 3/8" 31095618DOT
3/8" 1/4" 31096014DOT
3/8" 3/8" 31096018DOT
3/8" 1/2" 31096022DOT
1/2" 1/4" 31096214DOT
1/2" 3/8" 31096218DOT
1/2" 1/2" 31096222DOT
Note: This fitting can be oriented 360° allowing
proper positioning of the fitting.

* nickel-plated brass construction
Tube
OD		 Male
NPTF		 Part #
5/32" 1/8" 31080411DOT
5/32" 1/4" 31080414DOT
3/16" 1/8" 31085511DOT*
1/4" 1/8" 31085611DOT
1/4" 1/4" 31085614DOT
1/4" 3/8" 31085618DOT
3/8" 1/4" 31086014DOT
3/8" 3/8" 31086018DOT
3/8" 1/2" 31086022DOT
1/2" 1/4" 31086214DOT
1/2" 3/8" 31086218DOT
1/2" 1/2" 31086222DOT
Note: This fitting can be oriented 360° allowing
proper positioning of the fitting.


Male Run Tees


tube to tube to male NPT

Y Connectors


male NPT to tube
Tube
OD		 Male
NPTF		 Part #
3/16" 1/8" 31035511DOT'
1/4" 1/8" 31035611DOT
1/4" 1/4" 31035614DOT
1/4" 3/8" 31035618DOT
3/8" 1/4" 31036014DOT
3/8" 3/8" 31036018DOT
3/8" 1/2" 31036022DOT
1/2" 1/4" 31036214DOT
1/2" 3/8" 31036218DOT
1/2" 1/2" 31036222DOT
Note: This fitting can be oriented 360° allowing
proper positioning of the fitting.

* nickel-plated brass construction
Tube
OD		 Male
NPTF		 Part #
1/4" 1/8" 31485611DOT
1/4" 1/4" 31485614DOT
Note: This fitting can be oriented 360° allowing
proper positioning of the fitting.

Unions


tube to tube

Union Elbows


tube to tube
Tube
OD		 Part #
5/32" 31060400DOT
3/16" 31065500DOT
1/4" 31065600DOT
3/8" 31066000DOT
1/2" 31066200DOT
Tube
OD		 Part #
5/32" 31020400DOT
1/4" 31025600DOT
3/8" 31026000DOT
1/2" 31026200DOT

Union Tees


tube to tube to tube

Y Unions


tube to tube
Tube
OD		 Part #
5/32" 31040400DOT
3/16" 31045500DOT
1/4" 31045600DOT
3/8" 31046000DOT
1/2" 31046200DOT
Tube
OD		 Part #
1/4" 31405600DOT
3/8" 31406000DOT


Plug In Elbow

Plug In Run Tee
Tube
OD		 Part #
1/4" 31825600DOT
Tube
OD		 Part #
1/4" 31835600DOT


Reducers

Bulkhead Unions


tube to tube
Tube
OD		 Tube
OD		 Part #
1/4" 3/8" 31665660DOT

Tube
OD		 Part #
1/4" 31165600DOT
3/8" 31166000DOT
1/2" 31166200DOT *
* nickel-plated brass construction
