Dixon D.O.T. Push-In Fittings

Description:

Elbows - Connectors - Tees

Coupling Category

Air Fittings

Manufacturer

Dixon Air Fittings

  • materials:
    • body (straights) tube, supports and grippers: brass CA360
    • forged elbows and tees: brass CA377
    • O-ring: Buna-N
  • working pressure: Fittings are suitable for use up to the maximum working pressure of the plastic tubing used. Also suitable for vacuum service.
  • working temperature: -40°F to 212°F
  • pre-applied thread sealant (Loctite 516) on all male pipe threads
  • compatible tubing: SAE J844
  • specifications: meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494-1 and SAE J2494-3

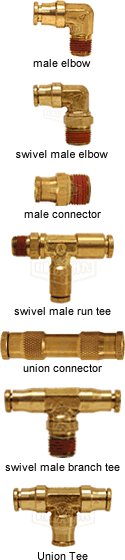

Male Elbows


tube to male NPT

Tube OD Male NPT  Part#
1/4" 1/8"    AQ69DOT4x2
1/4" 1/4" AQ69DOT4x4
3/8" 1/4" AQ69DOT6x4


Swivel Male Elbows


tube to male NPT

Male Connectors


tube to male NPT
Tube OD Male NPT Part #
1/4" 1/8" AQ69DOTS4x2
1/4" 1/4" AQ69DOTS4x4
1/4" 3/8" AQ69DOTS4x6
3/8" 1/4" AQ69DOTS6x4
3/8" 3/8" AQ69DOTS6x6
Tube OD Male NPT Part #
1/4" 1/8" AQ68DOT4x2
1/4" 1/4" AQ68DOT4x4
1/4" 3/8" AQ68DOT4x6
3/8" 1/4" AQ68DOT6x4
3/8" 3/8" AQ68DOT6x6


Swivel Male Run Tees


tube to male NPT

Union Connectors


tube to tube
Tube OD Male NPT Part #
1/4" 1/8" AQ71DOTS4x2
1/4" 1/4" AQ71DOTS4x4
Tube OD Part #
1/4" AQ62DOT4
3/8" AQ62DOT6


Swivel Male Branch Tees


tube to tube

Union Tees


tube to tube
Tube OD Male NPT Part #
1/4" 1/8" AQ72DOTS4X2
1/4" 1/4" AQ72DOTS4X4
Tube OD Part #
1/4" AQ64DOT4
3/8" AQ64DOT6
Dixon D.O.T. Push-In Fittings
