Dixon Spray Lances and Extensions for Pressure Gun

Description:

Spray - Dual Spray - Molded Grip - Vented Grip Lances

Coupling Category

Brass Fittings

Manufacturer

Dixon

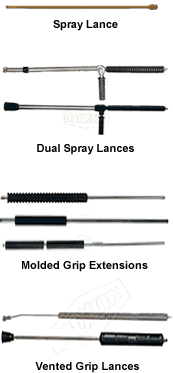

Spray Lance

Part # Description Length
AL248 zinc, 22 mm x 14 mm male inlet x 1/4" male outlet 24"
  • for use with AL9 spray gun only
  • operating pressure: 4000 PSI maximum
  • temperatures to 300°F


Dual Spray Lances

Part # Description Length Max. Operating PSI
AL333 zinc, 1/4" male inlet 2 each 1/4" female outlets 40" 3,650
AL344 stainless steel, 1/4" male inlet, 2 each 1/4" female outlets 40" 4,000
  • for use with HPSG, HPSGC, HPSGHD and HPSGW
  • for soap and water
  • temperatures to 300°F
  • GPM: 10.5
  • requires 1 high pressure nozzle and 1 soap nozzle
  • allows quick adjustment from high to low pressure with a twist of the handle; low pressure setting allows for use of soap.


Molded Grip Extensions

Part #  Description  Length
AL323XX  zinc, 1/4" male inlet x 1/4" male outlet  24"
AL324XX  zinc, 1/4" male inlet x 1/4" male outlet, 4" space from the end  36"
AL325XX  zinc, 1/4" male inlet x 1/4" male outlet, 2 grips  48"
AL326XX  zinc, 1/4" male inlet x 1/4" male outlet, 2 grips 59"
  • for use with HPSG, HPSGC, HPSGHD and HPSGW
  • operating pressure: 5000 PSI maximum
  • temperatures to 300°F
  • maximum GPM: 10.5


Vented Grip Lances

Part # Description Length
AL361 zinc, 1/4" male inlet x 1/4" female outlet, straight 36"
AL362 zinc, 1/4" male inlet x 1/4" female outlet, bent 48"
  • for use with HPSG, HPSGC, HPSGHD and HPSGW
  • for hot water
  • operating pressure: 5000 PSI maximum
  • temperatures to 300°F
  • maximum GPM: 10.5
